PRODUCT DETAILS

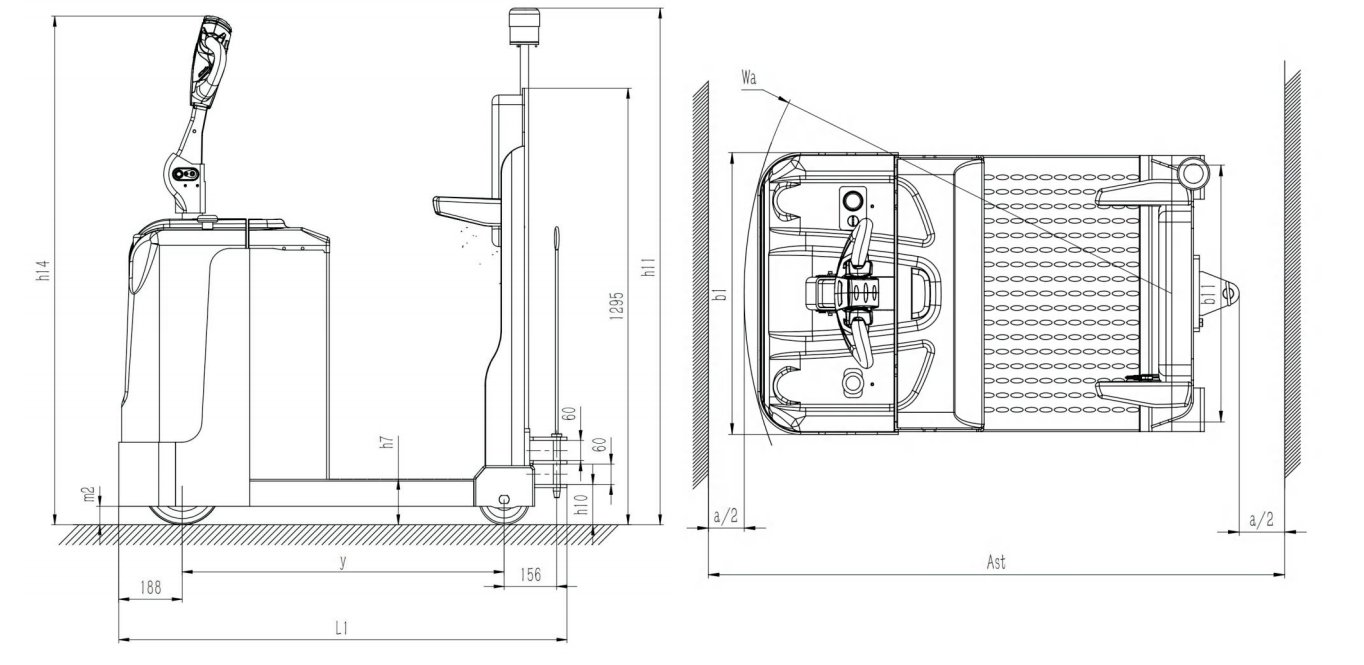

| Model | QDD20A | QDD30A | QDD50A | |||||||||
| Type of power | Lead-acid battery | |||||||||||
| Driving type | Stand-on type | |||||||||||
| Rated traction capacity | Q(kg) | 2000 | 3000 | 5000 | ||||||||
| Overall length | L1(mm) | 1330 | 1330 | 1350 | ||||||||
| Overall width | b1(mm) | 780 | 780 | 780 | ||||||||
| Overall height | h11(mm) | 1540 | 1540 | 1615 | ||||||||
| Height of traction base | h10(mm) | 60/120 | 60/120 | 194/274 | ||||||||
| Height of operation handle | h14(mm) | 1510 | 1510 | 1510 | ||||||||
| Height of vehicle off the ground(min) | m2(mm) | 55 | 55 | 55 | ||||||||
| Battery,voltage/capacity | V/Ah | 24V/210A | 24V/210A | 24V/280A | ||||||||
| Weight of battery | kg | 190 | 190 | 245 | ||||||||
| Vehicle weight(including battery) | kg | 630 | 630 | 1130 | ||||||||
| Driving Motor Power(S2-60MIN) | KW | 24V/1.6KW | 24V/1.6KW | 24V/2.2KW | ||||||||
| Tire | Polyurethane | |||||||||||
| Wheel dimensions,front wheel | φ230×75 | φ230×75 | φ230x75 | |||||||||
| Wheel dimensions,rear wheel | φ150x50 | φ150x50 | φ210×85 | |||||||||
| Number of wheels,front and rear(x= driving wheel) | 1x/2 | 1x/2 | 1x/2 | |||||||||
| Rear wheel track | b11(mm) | 662 | 662 | 622 | ||||||||
| Wheelbase | y(mm) | 955 | 955 | 990 | ||||||||
| Turn radius | Wa(mm) | 1182 | 1182 | 1215 | ||||||||
| Axle full load,/no load front/rear | kg | 213/417 | 213/417 | 311/819 | ||||||||
| Driving speed,full load/no load | Km/h | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | ||||||||
| Maximum climb,fullload/no load S2-5MIN) | % | 3.0/8.0 | 3.0/8.0 | 3.0/8.0 | ||||||||
| Braking type | Electromagnetic brake | |||||||||||

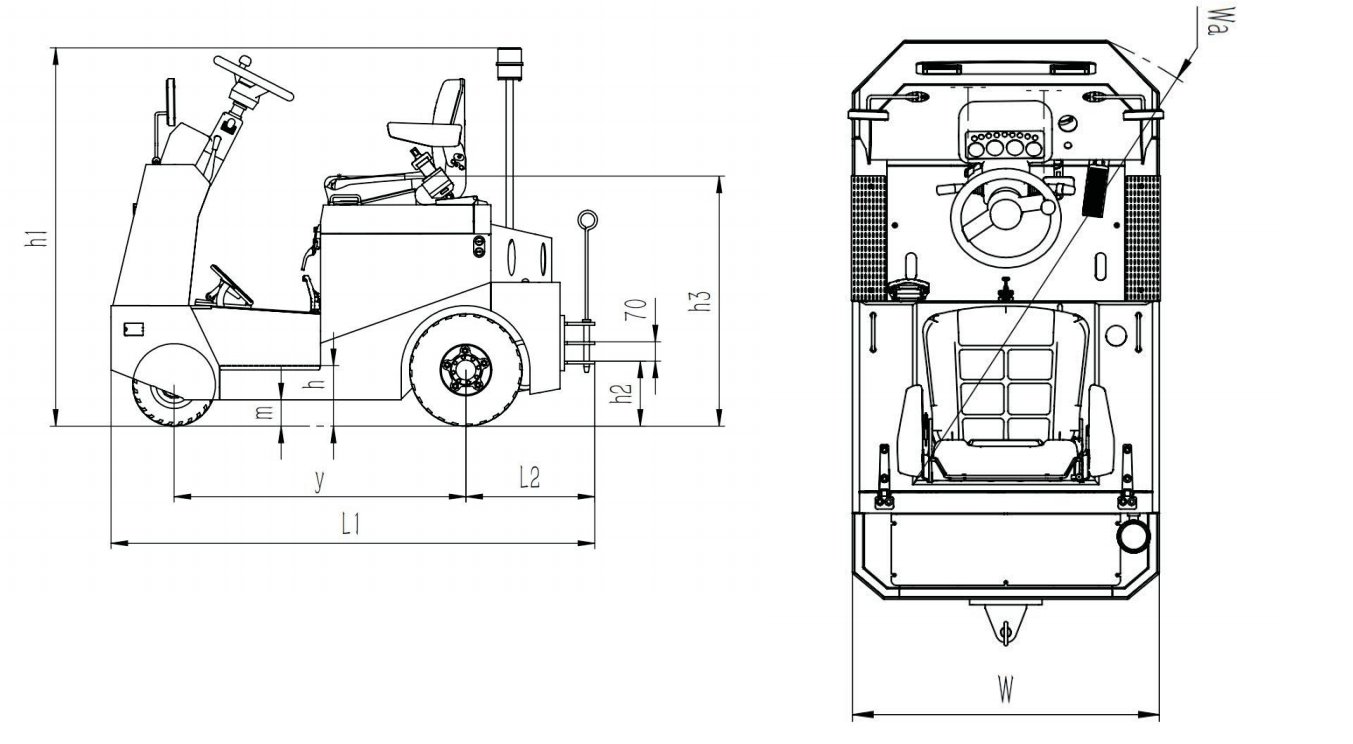

| Model | QDD30B QDD40B QDD40BG | ||||||||||
| Type of power | Lead-acid battery | ||||||||||
| Driving type | Seated-on type | ||||||||||
| Rated traction capacity | kg | 3000 | 4000 | 4000 | |||||||
| Overall length | L1(mm) | 1748 | 1748 | 1794 | |||||||
| Overall width | W(mm) | 890 | 890 | 890 | |||||||
| Overall height | h1(mm) | 1367 | 1367 | 1367 | |||||||
| Seat height | h3(mm) | 905 | 905 | 905 | |||||||
| Height of station board | h(mm) | 218 | 218 | 218 | |||||||
| Hook height adjustment range | h2(mm) | 205-265 | 205-265 | 205-265 | |||||||
| Height of vehicle off the ground(min) | m(mm) | 95 | 95 | 95 | |||||||
| Battery,voltage/capacity | V/Ah | 24/210 | 24/240 | 24/350 | |||||||
| Weight of battery | kg | 190 | 220 | 290 | |||||||
| Vehicle weight (including battery) | kg | 820 | 850 | 930 | |||||||
| Driving motor power | kw | 3 | 3 | 3.6 | |||||||
| Number of wheels (front/back)(x=drive wheel) | 2/2x | 2/2x | 2/2x | ||||||||
| Tire dimensions,steering side | Solid rubber tire | 3.50-5 | 3.50-5 | 3.50-5 | |||||||
| Tire dimensions,drive side | 4.00-8 | 4.00-8 | 4.00-8 | ||||||||
| Rear overhang | L2(mm) | 466 | 466 | 466 | |||||||
| Wheel track,steering side | mm | 220 | 220 | 220 | |||||||
| Wheel track,drive Side | mm | 776 | 776 | 776 | |||||||
| Wheelbase | y(mm) | 1054 | 1054 | 1100 | |||||||
| Turn radius | Wa(mm) | 1397 | 1397 | 1443 | |||||||
| Driving speed,full load/no load | km/h | 6/7 | 5/7 | 7/10 | |||||||
| Maximum climb,full load/no load | 9% | 6/14 | 4/14 | 5/14 | |||||||
| Control mode | Transistor stepless speed regulation | ||||||||||
| Vehicle noise | dB(A) | ≤70 | ≤70 | ≤70 | |||||||
| Traction bolts | Latch | ||||||||||
