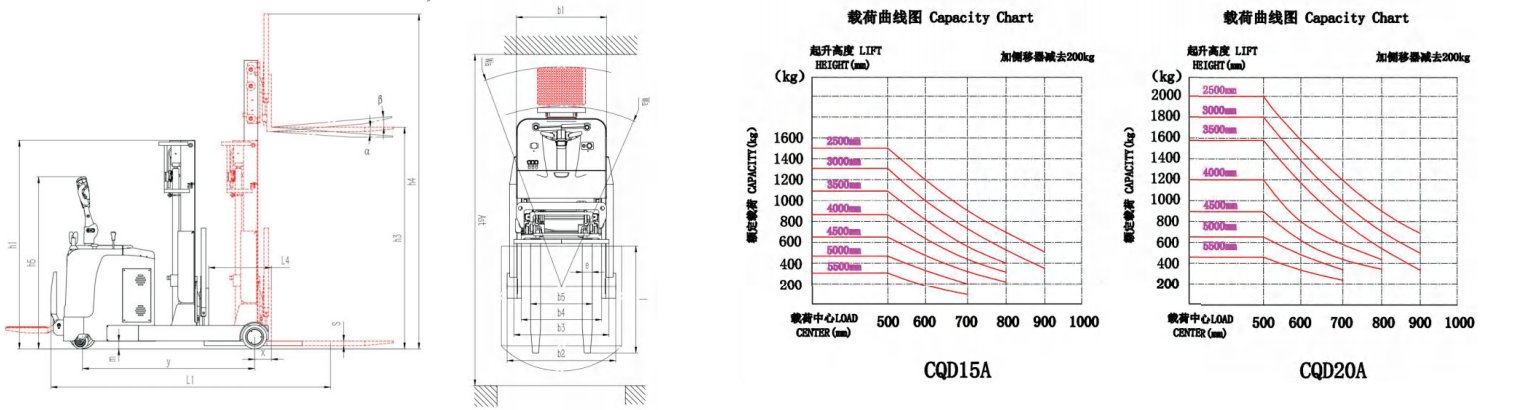

PRODUCT DETAILS
| Model | CQD15A | CQD15A | CQD20A | CQD20A | ||||||||
| Type of power | Lead-acid battery | |||||||||||
| Driving type | ()(Stand-on Pedal model) | |||||||||||
| Rated load | Q(kg) | 1500 | 1500 | 2000 | 2000 | |||||||
| Lifting height | h3(mm) | 2500 | 4500 | 2500 | 4500 | |||||||
| Overall length,pedals retracted/down | L1(mm) | 2450/2845 | 2470/2865 | 2455/2850 | 2475/2870 | |||||||
| Overall width | b1/b2 | 900/1084 | 900/1084 | 900/1084 | 900/1084 | |||||||
| Fork dimensions | s/e/I(mm) | 35/100/1070 | 40/122/1070 | |||||||||
| Inside width of support legs | b4(mm) | 802 | 802 | 802 | 802 | |||||||
| Fork outside width adjustment range | b5(mm) | 220-700 | 220-700 | 266-720 | 266-720 | |||||||
| The fork lean forward/backward | ° | 2/4. | 2/4. | 2/4. | 2/4. | |||||||
| Mast closed height | h1(mm) | 1835 | 2110 | 1835 | 2110 | |||||||
| Free lifting height | h2(mm) | / | 1540 | / | 1545 | |||||||
| The maximum height of the mast during lifting (including backrest) | h4(mm) | 3540 | 5495 | 3545 | 5495 | |||||||
| Width of load backrest | b3(mm) | 950 | 950 | 950 | 950 | |||||||
| Forward distance | L4(mm) | 450 | 450 | 550 | 550 | |||||||
| Min height of mast off the ground | mm | 100 | 100 | 100 | 100 | |||||||
| Height of vehicle off the ground | m(mm) | 68 | 68 | 68 | 68 | |||||||
| Height of the control handle | h5(mm) | 1510 | 1510 | 1510 | 1510 | |||||||
| Battery,voltage/capacity | V/Ah | 24/210 | 24/210 | 24/210 | 24/210 | |||||||
| Weight of battery | kg | 190 | 190 | 190 | 190 | |||||||
| Vehicle weight(including battery) | kg | 2050 | 2240 | 2150 | 2360 | |||||||
| Driving motor Power (S2-60MIN) | kw | 1.6(AC) | 1.6(AC) | 2.2(AC) | 2.2(AC) | |||||||
| Lifting motor power | kw | 3 | 3 | 3 | 3 | |||||||
| Tire | Polyurethane | |||||||||||
| Tire dimensions,drive wheel | mm | φ230x75 | φ230x75 | φ230×75 | φ230×75 | |||||||
| Tire dimensions,load wheel | mm | φ210x85 | φ210x85 | φ210x85 | φ210×85 | |||||||
| Dimension of balance wheel | mm | φ130x55 | φ130x55 | φ130×55 | φ130×55 | |||||||
| Number of wheels,front/rear(x=drive wheel) | 2/1X-2 | 2/1X-2 | 2/1X-2 | 2/1X-2 | ||||||||
| Wheel track,drive Side | mm | 684 | 684 | 684 | 684 | |||||||
| Wheel track,bear Side | mm | 983 | 983 | 983 | 983 | |||||||
| wheelbase | y(mm) | 1410 | 1410 | 1510 | 1510 | |||||||
| Load center | C(mm) | 500 | 500 | 500 | 500 | |||||||
| Front overhang | x(mm) | 143 | 163 | 148 | 168 | |||||||
| Turn radius,pedals retracted/down | Wa(mm) | 1705/2100 | 1705/2100 | 1805/2200 | 1805/2200 | |||||||
| Stacking channel width(pallet 1000x1200)1200 cross forks,pedals retracted/down | Ast(mm) | 2825/3220 | 2840/3235 | 2850/3245 | 2865/3260 | |||||||
| Stacking channel width(pallet 800x1200)1200 along fork,pedals retracted/down | Ast(mm) | 2885/3280 | 2905/3300 | 2895/3290 | 2915/3310 | |||||||
| Full-axle load,fork forward,drive side/bear side | kg | 530/3020 | 560/3180 | 395/3755 | 400/3960 | |||||||
| Full-axle load,fork retraced,drive side/bear side | kg | 1190/2360 | 1250/2490 | 1350/2800 | 1430/2930 | |||||||
| No-load axle load,drive side/load-bear side | kg | 1380/670 | 1450/790 | 1490/660 | 1570/790 | |||||||
| Driving speed full load/no load | km/h | 4.0/5.5 | 4.0/5.5 | 4.0/5.5 | 4.0/5.5 | |||||||
| Lifting speed full load/no load | mm/s | 80/150 | 80/150 | 75/130 | 75/130 | |||||||
| Descent speed full load/no load | mm/s | 200/105 | 200/105 | 200/95 | 200/95 | |||||||
| Maximum climbing,full load/no load (S2-5MIN) | % | 6/10. | 6/10. | 5/8. | 5/8. | |||||||
| Braking type | Electromagnetic brake | |||||||||||
| Steering type | Electronic steering | |||||||||||
| Battery replacement method | Lifting type | |||||||||||
| Remarks:thelength of L1 increased by 65mm,theforward distance decreased by 60mm,and the width o stacking chanel increased by 65mm.The maximum outside distance of the fork is 660mm. | ||||||||||||
