PRODUCT DETAILS
Wide-angle view, high-strength shock absorption mast
USA Curtis brand drive control system
Vertical Drive, electronic steering, portable, mute
Integrated low noise hydraulic pump
AC drive, No Carbon Brush, motor free-maintain
Electromagnetic regenerative braking system
Lifting limit, long life inductive switch
Body shock absorption system
Drive stepless speed regulation
Controller multiple automatic protection system
emergency power cut-off switch
Cylinder safety shut-off valve
Automatic deceleration in corners

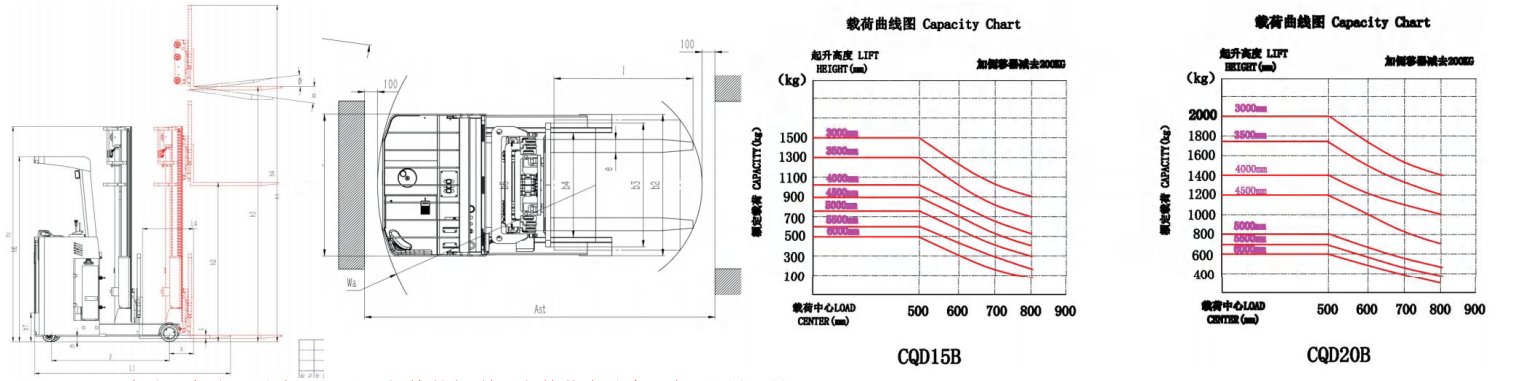

| Model | CQD15C | CQD20C | CQD20C | |||||||
| Type of power | Lead-acid battery | |||||||||
| Driving type | Side stand-on type | |||||||||
| Rated load | Q(kg) | 1500 | 2000 | 2000 | ||||||
| Lifting height | h3(mm) | 6000 | 6000 | 3000 | ||||||
| Overall length | L1(mm) | 2355 | 2385 | 2385 | ||||||
| Overall width | b1/b2 | 1090 | 1090 | 1090 | ||||||
| Fork dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 | ||||||
| Outside width of forks | b5(mm) | 220-700 | 266-700 | 266-700 | ||||||
| Inside width of support legs | b4(mm) | 802 | 802 | 802 | ||||||
| The fork lean forward/backward | ° | 2/4. | 2/4. | 2/4. | ||||||
| Mast closed height | h1(mm) | 2631 | 2631 | 2100 | ||||||
| Free lifting height | h2(mm) | 2030 | 2030 | / | ||||||
| The maximum height of the mast during lifting (including load backrestf) | h4(mm) | 7005 | 7005 | 4055 | ||||||
| Width of load backrest | b3(mm) | 950 | 950 | 950 | ||||||
| The height of the overhead guard | h6(mm) | 2265 | 2265 | 2265 | ||||||
| Height of station board | h7(mm) | 350 | 350 | 350 | ||||||
| Forward distance | L4(mm) | 550 | 620 | 620 | ||||||
| Min height of mast off the ground | mm | 107 | 107 | 107 | ||||||
| Height of vehicle off the ground | m(mm) | 65 | 65 | 65 | ||||||
| Battery,voltage/rated capacity | V/Ah | 24/280 | 24/280 | 24/280 | ||||||
| Weight of battery | kg | 245 | 245 | 245 | ||||||
| Vehicle weight(including battery) | kg | 2540 | 2700 | 2360 | ||||||
| Driving motor Power (S2-60MIN) | kw | 2.2 | 2.2 | 2.2 | ||||||
| Lifting motor power | kw | 3 | 3 | 3 | ||||||
| Tire | Polyurethane | |||||||||
| Tire dimensions,drive wheel | mm | φ210x85 | φ210×85 | φ210×85 | ||||||
| Tire dimensions,load wheel | mm | φ230x75 | φ230×75 | φ230×75 | ||||||
| Dimension of balance wheel | mm | φ150x50 | φ150×50 | φ150×50 | ||||||
| Number of wheels,front/rear(x=drive wheel) | 2/1X-2 | 2/1X-2 | 2/1X-2 | |||||||
| Wheel track,drive Side | mm | 693 | 693 | 693 | ||||||
| Wheel track,bear Side | mm | 989 | 989 | 989 | ||||||
| Wheelbase | y(mm) | 1434 | 1554 | 1554 | ||||||
| Load center | C(mm) | 500 | 500 | 500 | ||||||
| Front overhang | x(mm) | 194 | 174 | 152 | ||||||
| Turn radius | Wa(mm) | 1682 | 1800 | 1800 | ||||||
| Stacking channel width(pallet 1000x1200)1200 cross-fork direction | Ast(mm) | 2775 | 2830 | 2820 | ||||||
| Stacking channel width(pallet 800x1200)1200 along the fork direction | Ast(mm) | 2830 | 2865 | 2845 | ||||||
| Full axle load,fork forward,drive side/bear side | kg | 569/3471 | 583/4117 | 557/3813 | ||||||
| Full axle load,fork recovery,drive side/bear side | kg | 1305/2735 | 1770/2930 | 1608/2762 | ||||||
| No-load axle load,drive side/load-bear side | kg | 1670/870 | 1842/858 | 1618/742 | ||||||
| Driving speed,full load/no load | km/h | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | ||||||
| Lifting speed,full load/no load | mm/s | 80/150 | 75/150 | 75/150 | ||||||
| Descent speed,full load/no load | mm/s | 160/105 | 200/105 | 200/105 | ||||||
| Maximum climbing,fll load/no load(S2-5MIN) | % | 5.0/8.0 | 4.0/8.0 | 4.0/8.0 | ||||||
| Braking type | Electromagnetic brake | |||||||||
| Steering type | Electronic steering | |||||||||
| Battery replacement method | Side pull type | |||||||||
| Remarks:the length of L1 increased by 65mm,the forward distance decreased by 60mm,and the width of stacking channel increased by 65mm.The maximum outside distance of the fork is 660mm. | ||||||||||
Wide-angle view, high-strength shock absorption mast
USA Curtis brand drive control system
South-central transmission
Electronic steering, portability, mute
Split hydraulic pumps and valves
Electromagnetic regenerative braking system
High and low voltage limit, electric overheat protection
Circuit fault detection, error code diagnosis
Donghai brand 48V high-capacity lead-acid battery
Controller multiple automatic protection system
Casual backrest
Automatic deceleration in corners
Cylinder safety shut-off valve

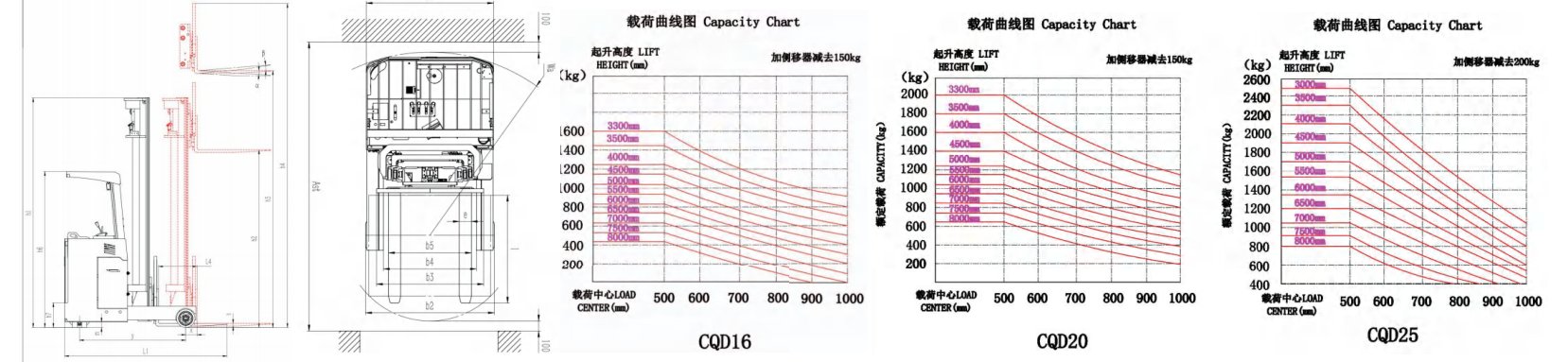

| Model | CQD16 | CQD20 | CQD25 | ||||||||||
| Type of power | Lead-acid battery | ||||||||||||
| Driving type | Side stand-on type | ||||||||||||
| Rated load | Q(kg) | 1600 | 2000 | 2500 | |||||||||
| Lifting height | h3(mm) | 7500 | 7500 | 7500 | |||||||||
| Overalll length | L1(mm) | 2440 | 2440 | 2520 | |||||||||
| Overall width | b1/b2 | 1260/1270 | 1260/1270 | 1260/1270 | |||||||||
| Fork dimensions | t/w/(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 | |||||||||
| Outside width of forks | b5(mm) | 240-800 | 266-820 | 266-820 | |||||||||
| Inside width of support legs | b4(mm) | 920 | 920 | 920 | |||||||||
| The fork lean forward/backward | ° | 2/4. | 2/4. | 2/4. | |||||||||
| Mast closed height | h1(mm) | 3345 | 3345 | 3345 | |||||||||
| Free lifting height | h2(mm) | 2535 | 2535 | 2535 | |||||||||
| The maximum height of the mast during lifting (including load backrest) | h4(mm) | 8515 | 8515 | 8515 | |||||||||
| The height of the overhead guard | h6(mm) | 2270 | 2270 | 2270 | |||||||||
| Height of station board | h7(mm) | 360 | 360 | 360 | |||||||||
| Width of load backrest | b3(mm) | 1060 | 1060 | 1060 | |||||||||
| Forward distance | L4(mm) | 560 | 560 | 660 | |||||||||
| Min height of mast off the ground | mm | 95 | 95 | 95 | |||||||||
| Height of vehicle off the ground | m(mm) | 80 | 80 | 80 | |||||||||
| Battery,voltage/capacity | V/Ah | 48/300 | 48/400 | 48/420 | |||||||||
| Weight of battery | kg | 480 | 655 | 665 | |||||||||
| Vehicle weight(including battery) | kg | 3320 | 3500 | 3600 | |||||||||
| Driving motor Power (S2-60MIN) | kw | 4.5(AC) | 6.5(AC) | 6.5(AC) | |||||||||
| Lifting motor power | kw | 6.3 | 6.3 | 8.6 | |||||||||
| Tire | Polyurethane | ||||||||||||
| Tire dimensions,drive wheel | mm | φ343x135 | φ343x135 | φ343x135 | |||||||||
| Tire dimensions,load wheel | mm | φ267x114 | φ267×114 | φ267×114 | |||||||||
| Dimension of balance wheel | mm | φ180×76 | φ180×76 | φ180x76 | |||||||||
| Number of wheels,front/rear(x=drive wheel) | 2/1X-2 | 2/1X-2 | 2/1X-2 | ||||||||||
| Wheeltrack,drive Side | mm | 805 | 805 | 805 | |||||||||
| Wheel track,bear Side | mm | 1156 | 1156 | 1156 | |||||||||
| Wheelbase | y(mm) | 1535 | 1535 | 1715 | |||||||||
| Load center | C(mm) | 500 | 500 | 500 | |||||||||
| Front overhang | x(mm) | 180 | 180 | 180 | |||||||||
| Turn radius | Wa(mm) | 1805 | 1805 | 1980 | |||||||||
| Stacking channel width (pallet 1000x1200)1200 cross-fork direction | Ast(mm) | 2865 | 2865 | 2970 | |||||||||
| Stacking channel width(pallet 800x1200)1200 along the fork direction | Ast(mm) | 2915 | 2915 | 3000 | |||||||||
| Full axle load,fork forward,drive side/bear side | kg | 945/3975 | 810/4690 | 1175/4295 | |||||||||
| Full axle load,fork recovery,drive side/bear side | kg | 1970/2950 | 2030/3470 | 2420/3680 | |||||||||
| No-load axle load,drive side/load-bear side | kg | 2045/1275 | 2160/1340 | 2340/1260 | |||||||||
| Driving speed,full load/no load | km/h | 7.8/8 | 7.8/8 | 7.8/8 | |||||||||
| Lifting speed,full load/no load | mm/s | 140/260 | 140/300 | 120/260 | |||||||||
| Descent speed,full load/no load | mm/s | 300/160 | 300/160 | 300/140 | |||||||||
| Maximum climbing,full load/no load (S2-5MIN) | ％ | 10 | 10 | 8/10. | |||||||||
| Braking type | Electromagnetic brake | ||||||||||||
| Steering type | Electronic steering | ||||||||||||
| Battery replacement method | Side pull type | ||||||||||||
| Remarks:the length of L1 increased by 65mm,the forward distance decreased by 60mm,and the width of tacking channel increased by 65mm.The maximum outside distance of the fork is 700mm. | |||||||||||||
