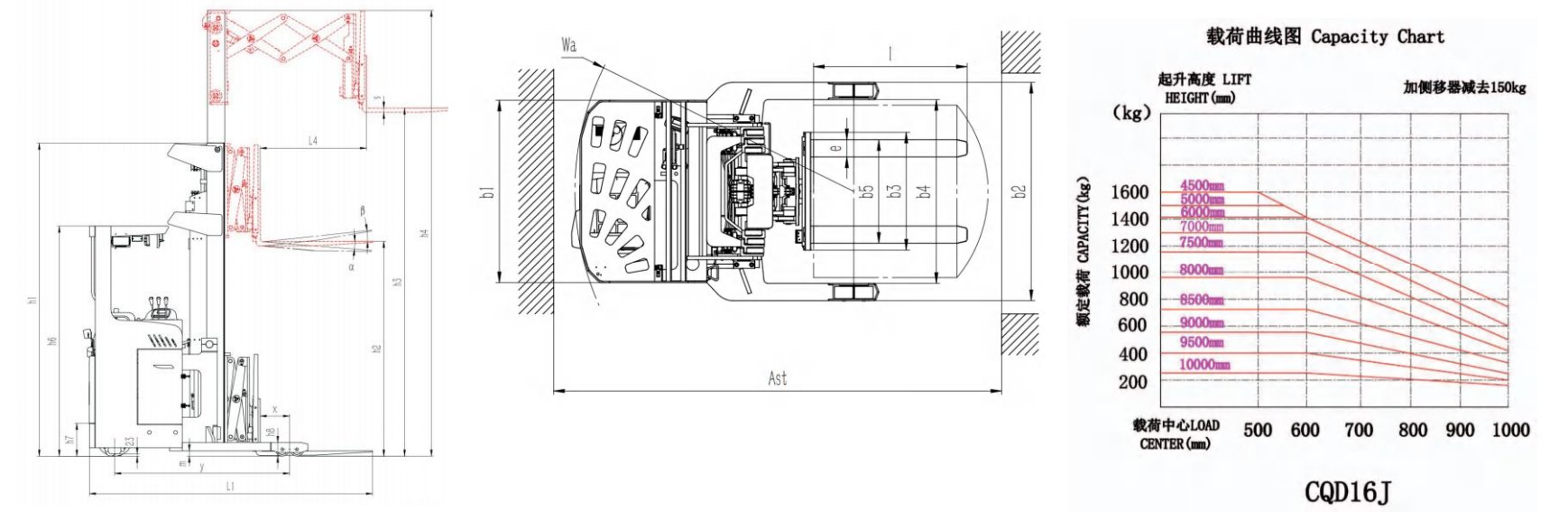

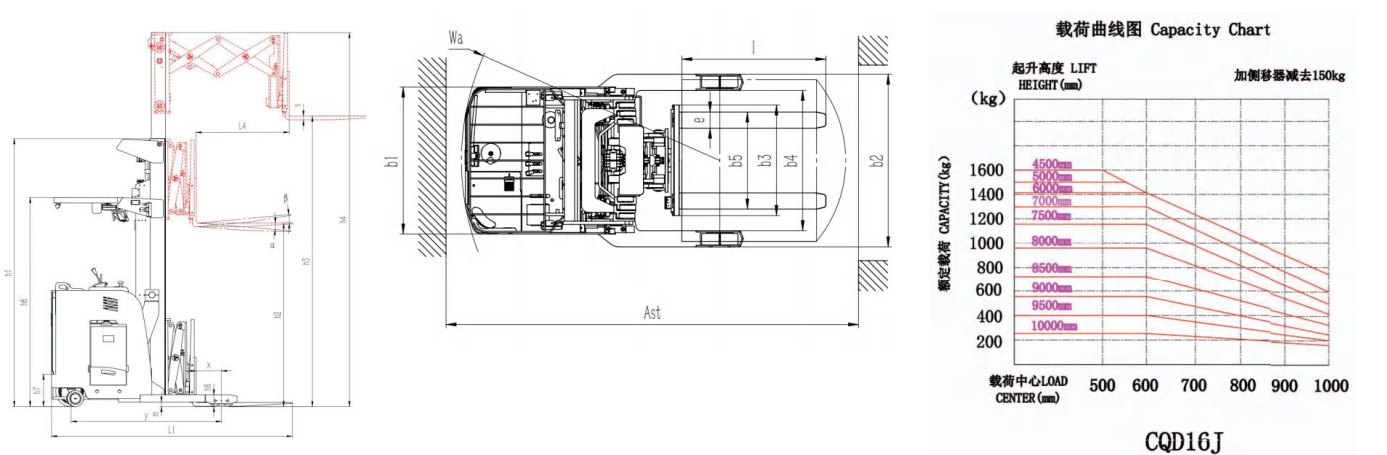

PRODUCT DETAILS
| Model | - | CQD16J | CQD16J |
| Type of power | - | Lead-acid battery | Lead-acid battery |
| Driving type | - | Side stand-on type | Seated-on type |
| Rated load | Q(kg) | 1600 | 1600 |
| Lifting height | h3 (mm) | 6000 | 6000 |
| Overall length | L1 (mm) | 2680 | 2705 |
| Overall width | b1/b2 (mm) | 1090/1520 | 1070/1520 |
| Fork dimensions | s/e/l (mm) | 40/122/1070 | 40/122/1070 |
| Outside width of forks | b5 (mm) | 266-720 | 266-720 |
| Inside width of support legs | b4 (mm) | 1280 | 1280 |
| The fork lean forward/backward | ° | 3/5 | 3/5 |
| Mast closed height | h1 (mm) | 2980 | 2980 |
| Free lifting height | h2 (mm) | 2050 | 2050 |
| Max height of mast during lifting (including load backrest) | h4 (mm) | 6970 | 6970 |
| Height of overhead guard | h6 (mm) | 2325 | 2190 |
| Height of station board | h7 (mm) | 360 | 310 |
| Height of support legs off the ground | h8 (mm) | 130 | 130 |
| Width of load backrest | b3 (mm) | 850 | 850 |
| Forward distance | L4 (mm) | 1000 | 1000 |
| Min height of mast off the ground | mm | 130 | 130 |
| Height of vehicle off the ground | mm | 50 | 50 |
| Battery, voltage/capacity | V/Ah | 48/400 | 48/400 |
| Weight of battery | kg | 655 | 655 |
| Vehicle weight (including battery) | kg | 4050 | 4150 |
| Driving motor power (S2-60MIN) | kw | 4.5 (AC) | 6.5 (AC) |
| Lifting motor power | kw | 8.6 | 8.6 |
| Tire | - | Polyurethane | Polyurethane |
| Tire dimensions, bear wheel | mm | φ130×85 | φ130×85 |
| Tire dimensions, drive wheel | mm | φ343×135 | φ343×135 |
| Tire dimensions, balance wheel | mm | φ180×76 | φ100×50 |
| Number of wheels, front/rear (x = drive wheel) | - | 4/1X-2 | 4/1X-2 |
| Wheel track, drive Side | mm | 735 | 960 |
| Wheel track, bear Side | mm | 1407 | 1407 |
| Wheelbase | y(mm) | 1675 | 1670 |
| Load center | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 280 | 280 |
| Turn radius | Wa (mm) | 1920 | 1950 |
| Stacking channel width (pallet 1200×1000) 1200 cross-fork direction | Ast (mm) | 3056 | 3085 |
| Stacking channel width (pallet 1200×800) 1200 along fork direction | Ast (mm) | 3122 | 3150 |
| Full axle load, fork forward, drive side/bear side | kg | 1150/4500 | 1200/4550 |
| No-load axle load, fork recovery, drive side/bear side | kg | 2536/1514 | 2650/1520 |
| Driving speed, full load/no load | km/h | 7.8/8 | 7.8/8 |
| Lifting speed, full load/no load | mm/s | 140/280 | 140/280 |
| Descent speed, full load/no load | mm/s | 300/150 | 300/150 |
| Maximum climbing, full load/no load (S2-5MIN) | % | 6 | 6 |
| Braking type | - | Electromagnetic brake | Electromagnetic brake |
| Steering type | - | Electronic steering | Electronic steering |
| Battery replacement method | - | Side pull type | Side pull type |
| Remarks | - | With the suspended side shifter, the overall length L1 increases by 65mm, and the stacking aisle width increases by 65mm. The maximum outer fork distance with the suspended side shifter is 700mm. | |
