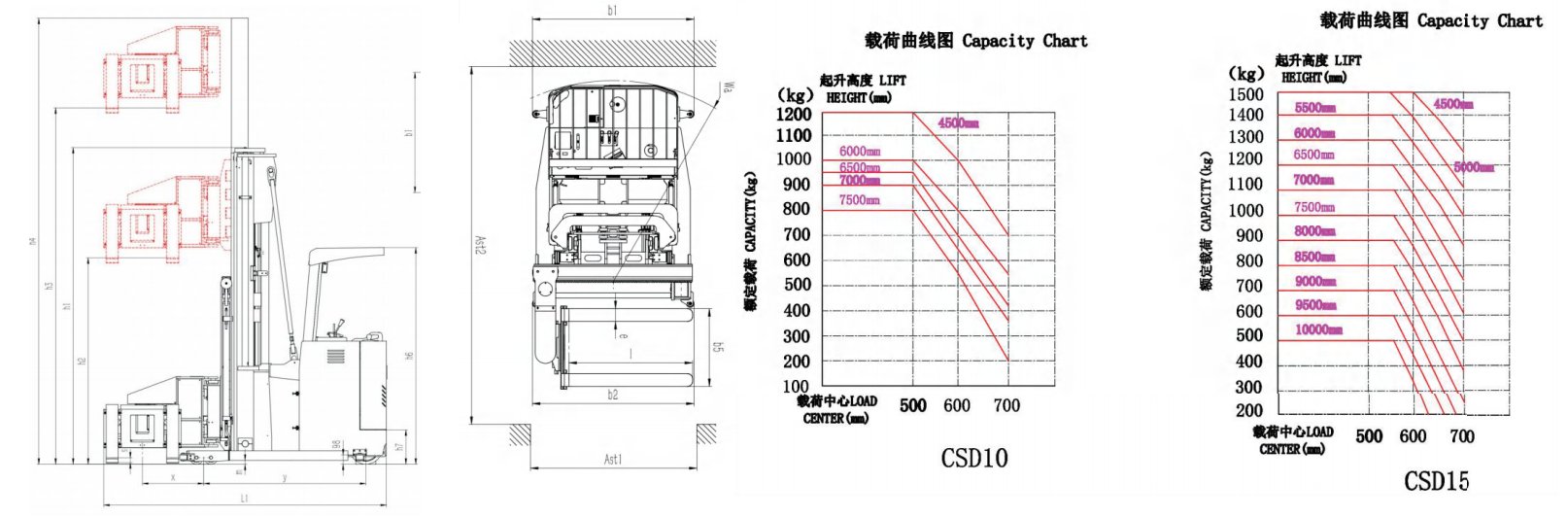

PRODUCT DETAILS
| Model | CSD10 | CSD15 | ||||||||
| Type of power | Lead-acid battery | |||||||||
| Driving type | Side stand-on type | |||||||||
| Rated load | Q(kg) | 1000 | 1500 | |||||||
| Lifting height | h3(mm) | 6000 | 6000 | |||||||
| Overall length | L1(mm) | 2815 | 2965 | |||||||
| Overall width | b1/b2 | 1450 | 1575 | |||||||
| Mast closed height | h1(mm) | 3350 | 3320 | |||||||
| Fork dimensions | s/e/l(mm) | 40/122/1070 | 45/125/1200 | |||||||
| Outside width of forks | b5(mm) | 700 | 760 | |||||||
| Free lifting height | h2(mm) | 2050 | 2095 | |||||||
| Max height of mast during lifting(including load backrest) | h4(mm) | 7340 | 7200 | |||||||
| The height of the overhead guard | h6(mm) | 2270 | 2270 | |||||||
| Height of station board | h7(mm) | 360 | 360 | |||||||
| Min height of mast off the ground | mm | 130 | 50 | |||||||
| Height of vehicle off the ground | m(mm) | 40 | 40 | |||||||
| Battery,voltage/capacity | V/Ah | 48/400 | 48/420 | |||||||
| Weight of battery | kg | 655 | 665 | |||||||
| Vehicle weight (including battery) | kg | 5150 | 6150 | |||||||
| Driving motor Power (S2-60MIN) | kw | 4.5(AC) | 6.5(AC) | |||||||
| Lifting motor power | kw | 6.3(DC) | 8.6(DC) | |||||||
| Tire | Polyurethane | |||||||||
| Tire dimensions,drive wheel | mm | φ343×135 | φ343×135 | |||||||
| Tire dimensions,bear wheel | mm | φ140x100 | φ140×127 | |||||||
| Dimension of balance wheel | mm | φ180x76 | φ180x76 | |||||||
| Number of wheels,front/rear(x=drive wheel) | 4/1X-2 | 4/1X-2 | ||||||||
| Wheel track,drive Side | mm | 805 | 805 | |||||||
| Wheel track,bear Side | mm | 1220 | 1323 | |||||||
| Wheelbase | y(mm) | 1605 | 1700 | |||||||
| Load center | C(mm) | 500 | 600 | |||||||
| Front overhang | x(mm) | 618 | 645 | |||||||
| Turn radius | Wa(mm) | 1870 | 1965 | |||||||
| Stacking channel width (1ton pallet 1000x1000)(1.5 ton pallet 1200x1200) | Ast1(mm) | 1500 | 1620 | |||||||
| Minimum main channel (1ton pallet 1000x1000)(1.5 ton pallet 1200x1200) | Ast2(mm) | 3400 | 3625 | |||||||
| Full load axle load,drive side/bear side | kg | 945/3975 | 2410/5240 | |||||||
| No-load axle load,drive side/load-bear side | kg | 2045/1275 | 2980/3170 | |||||||
| Driving speed,full/empty | km/h | 7.8/8 | 7.8/8 | |||||||
| Lifting speed,ful/no load | mm/s | 140/260 | 140/300 | |||||||
| Descent speed,full/no load | mm/s | 300/160 | 300/160 | |||||||
| Braking type | Electromagnetic brake | |||||||||
| Steering type | Electronic steering | |||||||||
| Battery replacement method | Side pull type | |||||||||
