PRODUCT DETAILS

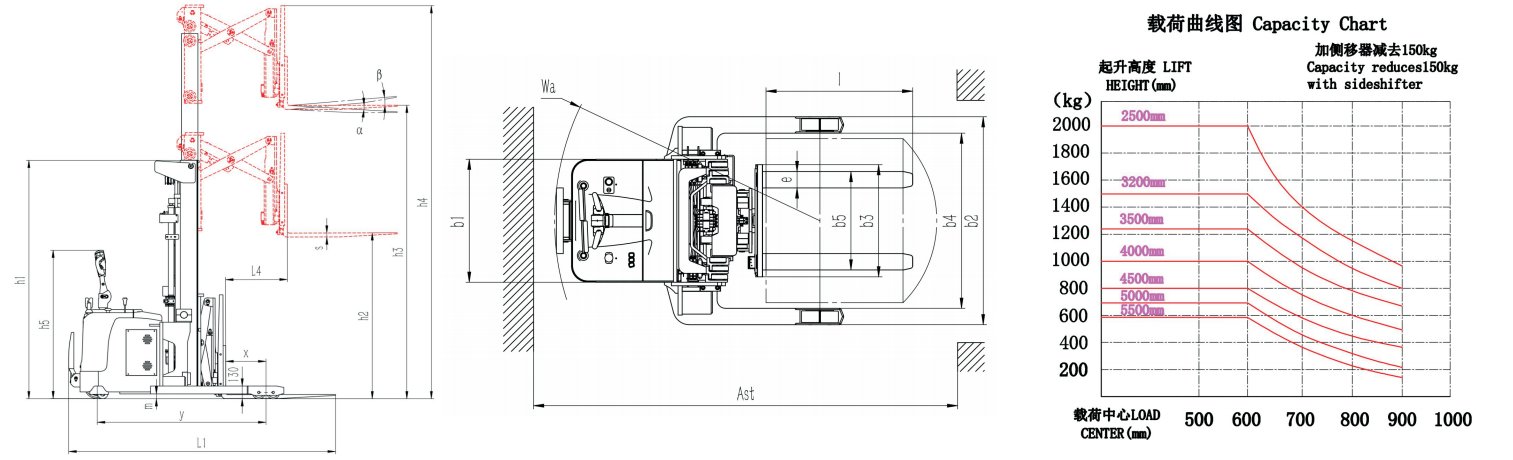

| Model | CQD15J CQD20J | ||||
| Type of power | Lead-acid battery | ||||
| Driving type | (Stand-on Pedal model) | ||||
| Rated load | Q(kg) | 1500 | 2000 | ||
| Lifting height | h3(mm) | 5000 | 5000 | ||
| Overall length(pedals retracted/down) | L1(mm) | 2596/2993 | 2601/2998 | ||
| Overall width | b1/b2 | 900/1520 | 900/1520 | ||
| Fork dimensions | s/e/l(mm) | 1070/100/35 | 1070/122/40 | ||
| Outside width of forks | b5(mm) | 240-700 | 266-720 | ||
| Inside width of support legs | b4(mm) | 1280 | 1280 | ||
| The fork lean forward/backward | ° | 3/5. | 3/5. | ||
| Mast closed height | h1(mm) | 2430 | 2430 | ||
| Free lifting height | h2(mm) | 1701 | 1711 | ||
| Max height of mast during lifting (including load backrest) | h4(mm) | 6020 | 6020 | ||
| Width of load backrest (add bolt) | b3(mm) | 850 | 850 | ||
| Forward distance | L4(mm) | 600 | 600 | ||
| Min height of mast off the ground | mm | 75 | 75 | ||
| Height of vehicle off the ground | m(mm) | 50 | 50 | ||
| Height of operating handle | m(mm) | 1510 | 1510 | ||
| Battery,voltage/capacity | V/Ah | 24/210 | 24/210 | ||
| Weight of battery | kg | 190 | 190 | ||
| Vehicle weight (including battery) | kg | 2730 | 2850 | ||
| Driving motor Power(S2-60MIN) | kw | 2.2(AC) | 2.2(AC) | ||
| Lifting motor power | kw | 3 | 3 | ||
| Tire | Polyurethane | ||||
| Tire dimensions,drive wheel | mm | φ250×75 | φ250×75 | ||
| Tire dimensions,bear wheel | mm | φ130x85 | φ130×85 | ||
| Tire dimensions,balance wheel | mm | φ100×50 | φ100x50 | ||
| Number of wheels,front/rear(x=drive wheel) | 4/1X-2 | 4/1X-2 | |||
| Wheel track,drive Side | mm | 654 | 654 | ||
| Wheel track,bear Side | mm | 1405 | 1405 | ||
| Wheelbase | y(mm) | 1546 | 1546 | ||
| Load center | C(mm) | 600 | 600 | ||
| Front overhang | x(mm) | 392 | 392 | ||
| Turn radius (pedals retracted/down) | Wa(mm) | 1937/2330 | 1937/2330 | ||
| Stacking channel width(pallet 1000×1200)cross-fork direction(pedals retracted/down) | Ast(mm) | 2990/3385 | 2990/3385 | ||
| Stacking channel width(pallet 1200x800)along fork direction(pedals retracted/down) | Ast(mm) | 3037/3430 | 3037/3430 | ||
| Driving speed,full load/no load | km/h | 4.0/5.5 | 4.0/5.5 | ||
| Lifting speed,full load/no load | mm/s | 75/135 | 70/120 | ||
| Descent speed,full load/no load | mm/s | 200/105 | 200/95 | ||
| Maximum climbing,full load/no load (S2-5MIN) | % | 6/10 | 5/8 | ||
| Braking type | Electromagnetic brake | ||||
| Steering type | Electronic steering | ||||
| Battery replacement method | Lift type | ||||
| Note:With the suspension side shifter,the total length Y(L1)increases by 65mm,and the stacking aisle width increases by 65mm.The maximum outer width of the forks with the suspension side shifter is 660mm. | |||||
