PRODUCT DETAILS

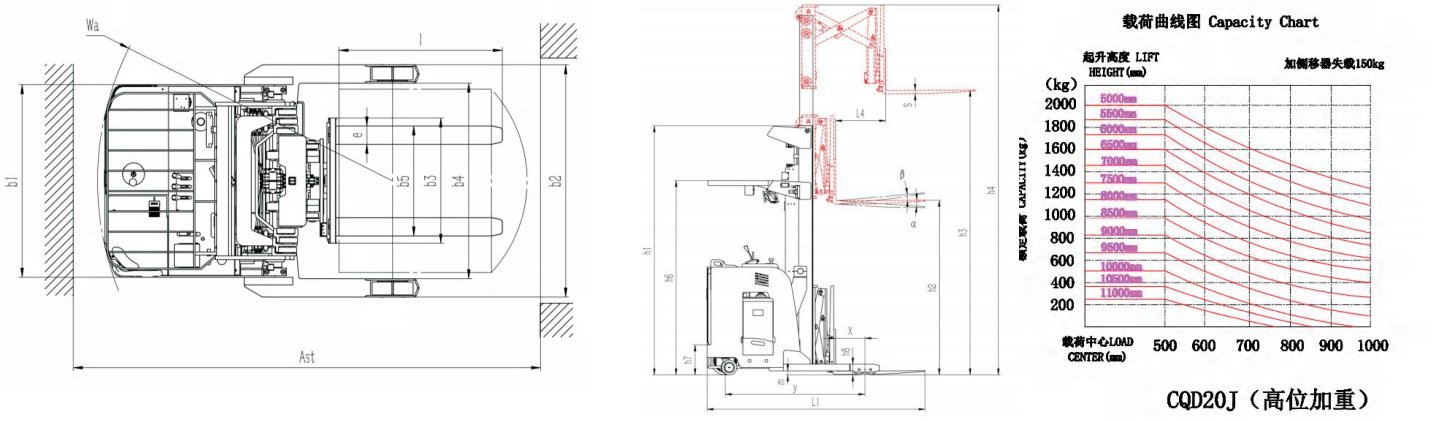

| Model | CQD20J | ||||||
| Type of power | Lead-acid battery | ||||||
| Driving type | /Seated/Stand-on type | ||||||
| Rated load | Q(kg) | 2000 | |||||
| Lifting height | h3(mm) | 6000 | |||||
| Overall length | L1(mm) | 2610 | |||||
| Overall width | b1/b2 | 1260/1520 | |||||
| Fork dimensions | s/e/l(mm) | 1070/122/40 | |||||
| Outside width of forks | b5(mm) | 266-720 | |||||
| Inside width of support legs | b4(mm) | 1280 | |||||
| The fork lean forward/backward | ° | 3/5. | |||||
| Mast closed height | h1(mm) | 2980 | |||||
| Free lifting height | h2(mm) | 2050 | |||||
| Max height of mast during lifting(including load backrest) | h4(mm) | 7065 | |||||
| Height of overhead guard | h6(mm) | 2325 | |||||
| Height of station board | h7(mm) | 360 | |||||
| Height of support legs off the ground | h8(mm) | 130 | |||||
| Width of load backrest(add bolt) | b3(mm) | 850 | |||||
| Forward distance | L4(mm) | 600 | |||||
| Min height of mast off the ground | mm | 130 | |||||
| Height of vehicle off the ground | m(mm) | 50 | |||||
| Battery,voltage/capacity | V/Ah | 48/400 | |||||
| Weight of battery | kg | 655 | |||||
| Vehicle weight (including battery) | kg | 4000 | |||||
| Driving motor Power(S2-60MIN) | kw | 6.5(AC) | |||||
| Lifting motor power | kw | 8.6 | |||||
| Tire | Polyurethane | ||||||
| Tire dimensions,drive wheel | mm | φ343x135 | |||||
| Tire dimensions,bear wheel | mm | φ130×85 | |||||
| Tire dimensions,balance wheel | mm | φ180×76 | |||||
| Number of wheels,front/rear(x=drive wheel) | 4/1X-2 | ||||||
| Wheel track,drive Side | mm | 830 | |||||
| Wheel track,bear Side | mm | 1407 | |||||
| Wheelbase | y(mm) | 1707 | |||||
| Load center | C(mm) | 500 | |||||
| Front overhang | x(mm) | 280 | |||||
| Turn radius | Wa(mm) | 1975 | |||||
| Stacking channel width(pallet 1200x1000)1200 cross-fork direction | Ast(mm) | 3030 | |||||
| Stacking channel width(pallet 1200×800)1200 along fork direction | Ast(mm) | 3080 | |||||
| Full axle load,fork forward,drive side/bear side | kg | 1645/4355 | |||||
| Full axle load,fork recovery,drive side/bear side | kg | 2365/3635 | |||||
| No-load axle load,drive side/load-bear side | kg | 2510/1490 | |||||
| Driving speed,full load/no load | km/h | 7.8/8 | |||||
| Lifing speed,full load/no load | mm/s | 140/260 | |||||
| Descent speed,full load/no load | mm/s | 300/150 | |||||
| Braking type | Electromagnetic brake | ||||||
| Steering type | Electronic steering | ||||||
| Battery replacement method | Side pull type | ||||||
| Remarks:the length of L1 increased by 65mm,and the width of stacking channel increased by 65mm.The maximum outside distance of the fork is 700mm. | |||||||
