Seated-On Electric Reach Truck 24V & 48V

Reach Truck (Seated-on)24 V & 48V

(0) Reviews

Inquiry Now

Add To Cart

PRODUCT DETAILS
INQUIRY NOW
RELATED PRODUCTS

PRODUCT DETAILS

Advantage

Wide-angle view, high-strength shock absorption mast
USA Curtis brand drive control system
Vertical Drive, electronic steering, portable, mute
Integrated low noise hydraulic pump
AC drive, No Carbon Brush, motor free-maintain
Electromagnetic regenerative braking system
Lifting limit, long life inductive switch
Body shock absorption system

Safety

Drive stepless speed regulation
Controller multiple automatic protection system
Emergency power off switch
Automatic deceleration in corners
Cylinder safety shut-off valve

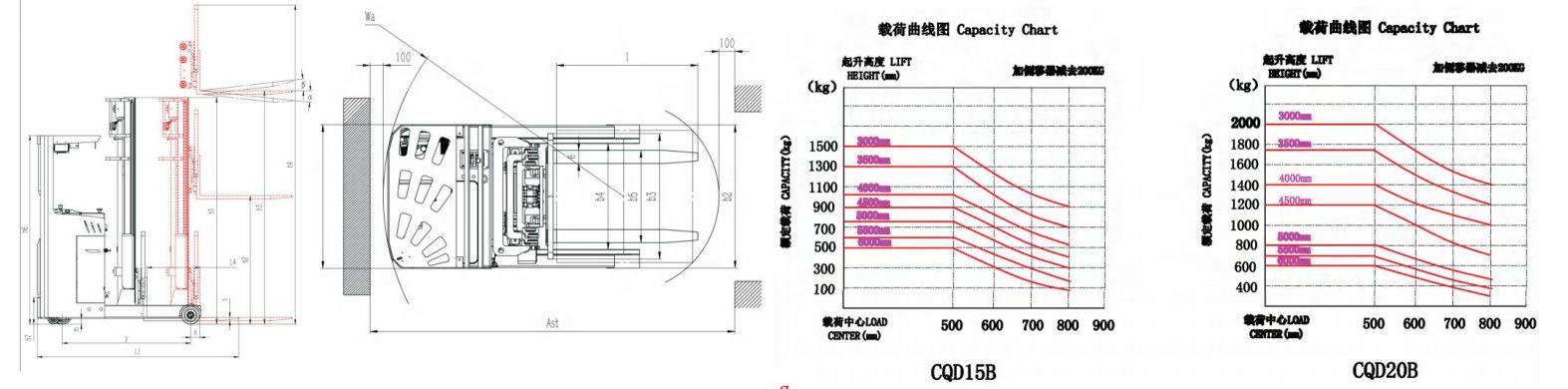

Model

CQD15B

CQD20B

Type of power

Lead-acid battery

Driving type

Seated-on type

Rated load

Q(kg)

1500

2000

Lifting height

h3(mm)

6000

3000

Overall length

L1(mm)

2343

2378

Overall width

b1/b2

1090

Fork dimensions

s/e/l(mm)

35/100/1070

40/122/1070

Outside width of forks

b5(mm)

220-700

266-700

Inside width of support legs

b4(mm)

802

Mast closed height

h1(mm)

2631

2100

Free lifting height

h2(mm)

2030

The maximum height of the mast during ifting
(including load backrest)

h4(mm)

7005

4055

The height of the overhead guard

h6(mm)

2190

Height of station board

h7(mm)

310

Width of load backrest

b3(mm)

950

Forward distance

L4(mm)

550

620

Min height of mast off the ground

107

Height of vehicle off the ground

m(mm)

Battery,voltage/capacity

V/Ah

24/280

Weight of battery

245

Vehicle weight(including battery)

2600

2720

2375

Driving motor Power (S2-60MIN)

2.2

Lifting motor power

Tire

Polyurethane

Tire dimensions,drive wheel

φ210×85

Tire dimensions,load wheel

φ230×75

φ230x75

Dimension of balance wheel

φ130x55

Number of wheels,front/rear(x=drive wheel)

2/1X-2

Wheel track,drive Side

844

Wheel track,bear Side

989

The fork lean forward/backward

2/4.

Wheelbase

y(mm)

1373

1493

Load center

C(mm)

500

Front ovrehang

x(mm)

162

142

Turn radius

Wa(mm)

1723

1830

Stacking channel wdth(pallet 1000×1200)1200
cross-fork direction

Ast(mm)

2775

2830

2820

Stacking channel width(pallet 800x1200)1200
along the fork direction

Ast(mm)

2820

2860

2840

Full axle load,fork forward,drive side/bear side

797/3303

727/3993

759/3616

Full axle load,fork recovery,drive side/bear side

1775/2325

2105/2615

1851/2524

No-load axle load,drive side/load-bear side

1872/728

1992/728

1854/521

Driving speed,full load/no load

km/h

4.0/5.0

Lifting speed,full load/no load

mm/s

80/150

75/150

Descent speed,full load/no load

mm/s

160/105

200/105

Maximum climbing,full load/no load(S2-5MIN)

5.0/8.0

4.0/8.0

Braking type

Electromagnetic brake

Steering type

Electronic steering

Battery replacement method

Side pull Side pull type

Remarks:the length of L1 increased by 65mm,the forward distance decreased by 60mm,and the width of stacking channel increased by 65mm.The maximum outside
distance of the fork is 660mm.

Advantage

Wide-angle view, high-strength shock absorption mast
USA Curtis brand drive control system
South-central transmission
Electronic steering, portability, mute
Split hydraulic pumps and valves
Electromagnetic regenerative braking system
High and low voltage limit, electric overheat protection
Circuit fault detection, error code diagnosis
Donghai brand 48V high-capacity lead-acid battery

Safety

Drive stepless speed regulation
Controller multiple automatic protection system
Casual safety seat
Automatic deceleration in corners
Cylinder safety shut-off valve

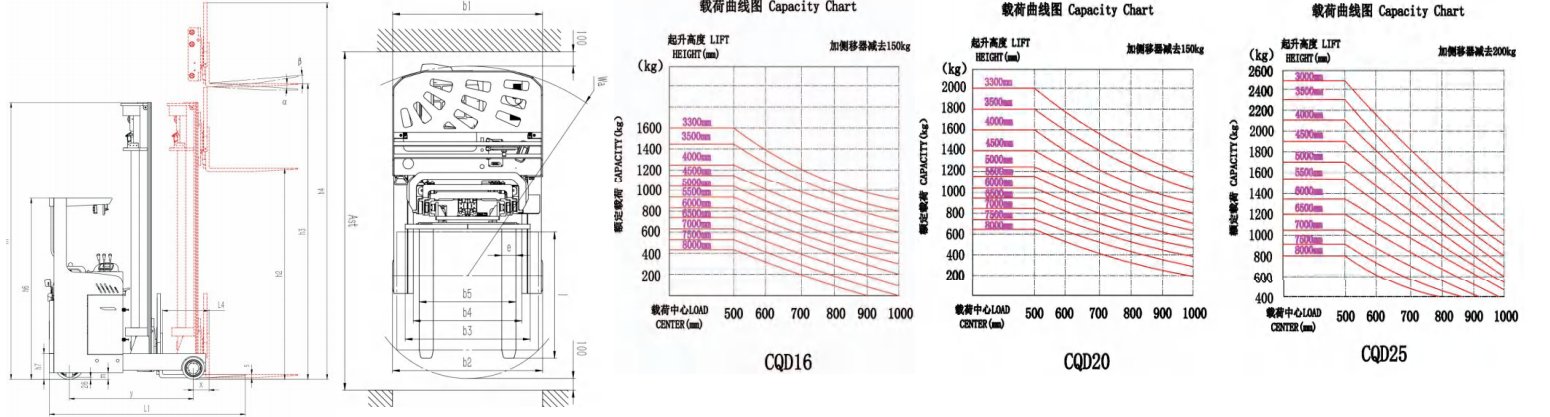

Model		CQD16	CQD20	CQD25
Type of power		Lead-acid battery
Driving type		Seated-on type
Rated load	Q(kg)	1600	2000	2500
Lifting height	h3(mm)	6000	6000	6000
Overall length	L1(mm)	2435	2435	2515
Overall width	b1/b2	1270	1270	1270
Fork dimensions	s/e/(mm)	35/100/1070	40/122/1070	40/122/1070
Outside width of forks	b5(mm)	240-800	266-820	266-820
Inside width of support legs	b4(mm)	920	920	920
The fork lean forward/backward	°	2/4.	2/4.	2/4.
Mast closed height	h1(mm)	2795	2795	2795
Free lifting height	h2(mm)	2045	2045	2045
The maximum height of the mast during lifing(including load backrest)	h4(mm)	7025	7025	7025
The height of the overhead guard	h6(mm)	2190	2190	2190
Height of station board	h7(mm)	316	316	316
Width of load backrest	b3(mm)	1060	1060	1060
Forward distance	L4(mm)	560	560	660
Min height of mast off the ground	mm	95	95	95
Height of vehicle off the ground	m(mm)	80	80	80
Battery,voltage/capacity	V/Ah	48/300	48/400	48/420
Weight of battery	kg	480	665	665
Vehicle weight(including battery)	kg	3150	3350	3430
Driving motor Power (S2-60MIN)	kw	4.5(AC)	6.5(AC)	6.5(AC)
Lifting motor power	kw	6.3	6.3	8.6
Tire		Polyurethane
Tire dimensions,drive wheel	mm	φ343×135	φ343x135	φ343x135
Tire dimensions,load wheel	mm	φ267x114	φ267x114	φ267x114
Number of wheels,front/rear(x=drive wheel)		2/1X	2/1X	2/1X
Wheel track,drive Side	mn	/	/	/
Wheel track,bear Side	mm	1156	1156	1156
Wheelbase	y(mm)	1495	1495	1675
Load center	C(mm)	500	500	500
Front overhang	x(mm)	190	190	190
Turn radius	Wa(mm)	1775	1775	1955
Stacking channel width(pallet 1000x1200)1200 cross-fork direction	Ast(mm)	2845	2845	2955
Stacking channel width(pallet 800x1200)1200 along the fork direction	Ast(mm)	2895	2895	2985
Full axle load,fork forward,drive side/bear side	kg	750/4000	680/4670	650/5280
Full axle load,fork recovery,drive side/bear side	kg	1810/2940	1900/3450	2160/3770
No-load axle load,drive side/load-bear side	kg	1950/1200	2085/1265	2200/1230
Driving speed,full load/no load	km/h	7.8/8	7.8/8	7.8/8
Lifting speed,full load/no load	mm/s	140/260	140/300	120/260
Descent speed,full load/no load	mm/s	300/160	300/160	300/140
Maximum climbing,full load/no load (S2-5MIN)	%	10	10	8/10.
Braking type		Electromagnetic brake
Steering type		Electronic stering
Battery replacement method		Side pull type
Remarks:the Overalllength of L1 increased by 65mm,the width of stacking channel increased by 65mm.The maximum outside distance of the fork is 700mm.
