PRODUCT DETAILS

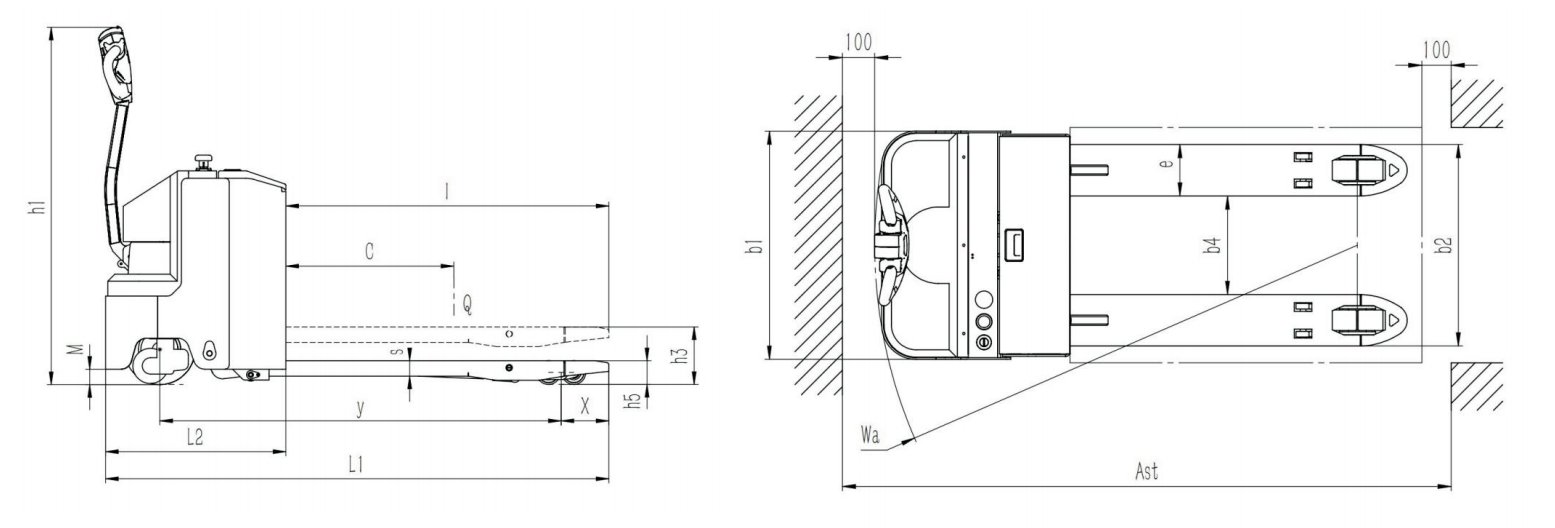

| Model | CBD20B | CBD25B CBD30B | |||
| Type of power | Lead-acid battery | ||||
| Driving type | Walkie type | ||||
| Rated load | Q(kg) | 2000 | 2500 | 3000 | |
| Lifting height | h3(mm) | 205 | 205 | 205 | |
| Overall length | L1(mm) | 1792 | 1792 | 1792 | |
| Overall width | b1(mm) | 776 | 776 | 776 | |
| Overall height | h1(mm) | 1270 | 1270 | 1270 | |
| Fork dimensions | t/w/(mm) | 55(70)/175/1150 | 55(70/175/1150 | 55(70)/175/1150 | |
| Outside width of forks | b2(mm) | 685/560 | 685/560 | 685/560 | |
| Inside width of forks | b4(mm) | 335/210 | 335/210 | 335/210 | |
| Distance from front end of fork to rear | L2(mm) | 640 | 640 | 640 | |
| Height of rear tail plate off the ground | M(mm) | 55 | 55 | 55 | |
| Height of fork off the ground(min) | h5(mm) | 85-90 | 85-90 | 85-90 | |
| Battery,voltage/capacity | V/Ah | 24/165 | 24/165 | 24/165 | |
| Weight of battery | kg | 190 | 190 | 190 | |
| Vehicle weight (including battery) | kg | 640 | 640 | 640 | |
| Driving motor power | kw | 1.5 | 1.5 | 1.5 | |
| Lifting motor power | kw | 0.8 | 0.8 | 1.2 | |
| Tire | Polyurethane | ||||
| Dimension of drive wheel | mm | φ250x80 | φ250x80 | φ250x80 | |
| Dimension of bear wheel | mm | φ85×70 | φ85×70 | φ85×70 | |
| Dimension of balance wheel | mm | φ125×50 | φ125x50 | φ125×50 | |
| Number of wheel (front/back)(x =drive wheel) | mm | 4/1x-2 | 4/1x-2 | 4/1x-2 | |
| Track Width,bear Side | mm | 510/385 | 510/385 | 510/385 | |
| Track Width,drive Side | mm | 584 | 584 | 584 | |
| Wheelbase | y(mm) | 1429 | 1429 | 1429 | |
| Load center | C(mm) | 600 | 600 | 600 | |
| Front Overhang | X(mm) | 170 | 170 | 170 | |
| Turn radius | Wa(mm) | 1645 | 1645 | 1645 | |
| Stacking channel width,pallet 1000X1200(1200 transverse) | Ast(mm) | 2015 | 2015 | 2015 | |
| Stacking channel width,pallet 800X1200(1200 vertical) | Ast(mm) | 2065 | 2065 | 2065 | |
| No-load axle load,drive side/bear side | kg | 985/1655 | 1170/1970 | 1360/2280 | |
| Full load axe load,drive side/bear side | kg | 515/125 | 515/125 | 515/125 | |
| Driving speed,full load/no load | km/h | 3.5/4 | 3/4 | 3/4 | |
| Lifting speed,full load/no load | mm/s | 40/50 | 40/50 | 25/30 | |
| Descend speed,full load/no load | mm/s | 40/35 | 40/35 | 43/38 | |
| Maximum climbing full load/no load | % | 6/8 | 4/8 | 3/8 | |
| Braking type | Electromagnetic brake | ||||
| Control mode | Mosfet control | ||||
| Vehicle Noise | dB(A) | ≤70 | ≤70 | ≤70 | |
