PRODUCT DETAILS

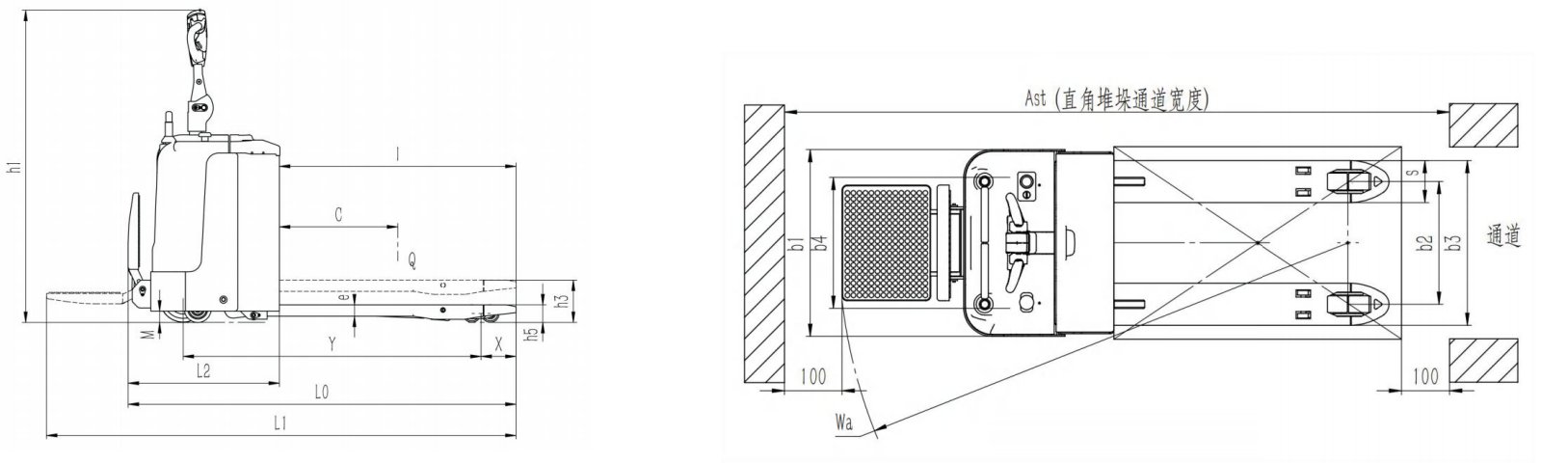

| Model | CBD20 | CBD25 CBD30 | |||
| Type of power | Lead-acid battery | ||||
| Driving type | ()(Stand-on Pedal model) | ||||
| Rated load | Q(kg) | 2000 | 2500 | 3000 | |
| Lifting height | h3(mm) | 205 | 205 | 205 | |
| Overall length(pedals retracted) | L0(mm) | 1885 | 1885 | 1885 | |
| Overall length(pedals down) | L1(mm) | 2282 | 2282 | 2282 | |
| Overall width | b1(mm) | 776 | 776 | 776 | |
| Fork dimensions | e/s/(mm) | 55(70)/175/1150 | |||
| Outside width of forks | b3(mm) | 685/560 | 685/560 | 685/560 | |
| Distance from front end of fork to rear | L2(mm) | 735 | 735 | 735 | |
| Height of rear tail plate off the ground | M(mm) | 55 | 55 | 55 | |
| Height of fork off the ground(min) | h5(mm) | 85-90 | 85-90 | 85-90 | |
| Height of operation handle(max/min) | h1(mm) | 1510/1120 | 1510/1120 | 1510/1120 | |
| Battery,voltage/capacity | V/Ah | 24/210 | 24/210 | 24/210 | |
| Weight of battery | kg | 190 | 190 | 190 | |
| Vehicle weight(including battery) | kg | 660 | 660 | 660 | |
| Driving Motor Power | kw | 1.6 | 1.6 | 1.6 | |
| Lifting motor power | kw | 0.8 | 0.8 | 2.2 | |
| Tire | Polyurethane | ||||
| Tire dimensions,drive wheel | mm | φ230×75 | φ230×75 | φ230×75 | |
| Tire dimensions,load wheel | mm | φ85×70 | φ85×70 | φ85×70 | |
| Dimension of balance wheel | mm | φ130×55 | φ130x55 | φ130x55 | |
| Number of wheels(front/back)(x=drive wheel) | mm | 4/1x-2 | 4/1x-2 | 4/1x-2 | |
| Track Width,bear Side | b2(mm) | 510/385 | 510/385 | 510/385 | |
| Track Width,drive Side | b4(mm) | 544 | 544 | 544 | |
| Wheelbase | Y(mm) | 1447 | 1447 | 1447 | |
| Load Center | C(mm) | 600 | 600 | 600 | |
| Front Overhang | X(mm) | 170 | 170 | 170 | |
| Turn radius(pedals retracted/down) | Wa(mm) | 1730/2125 | 1730/2125 | 1730/2125 | |
| Stacking channel width,pallet 1000X1200(1200 transverse)(pedals up/down) | Ast(mm) | 2100/2495 | 2100/2495 | 2100/2495 | |
| Stacking channel width,pallet 800X1200(1200 vertical)(pedals up/down) | Ast(mm) | 2150/2545 | 2150/2545 | 2150/2545 | |
| Full load axle load,drive side/bear side | kg | 1060/1600 | 1190/1970 | 1320/2340 | |
| No-load axle load,drive side/bear side | kg | 533/127 | 533/127 | 533/127 | |
| Drivin speed,full load/no load | km/h | 4.8/5.5 | 4.8/5.5 | 4.8/5.5 | |
| Lifting speed,full load/no load | mm/s | 40/50 | 40/50 | 30/35 | |
| Descent speed,full load/no load | mm/s | 40/35 | 40/35 | 50/40 | |
| Maximum climbing,full load/no load | % | 6/12. | 4/12. | 3/12. | |
| Braking type | Electromagnetic brake | ||||
| Control mode | Mosfet control | ||||
| Vehicle noise | dB(A) | ≤70 | ≤70 | ≤70 | |
