PRODUCT DETAILS

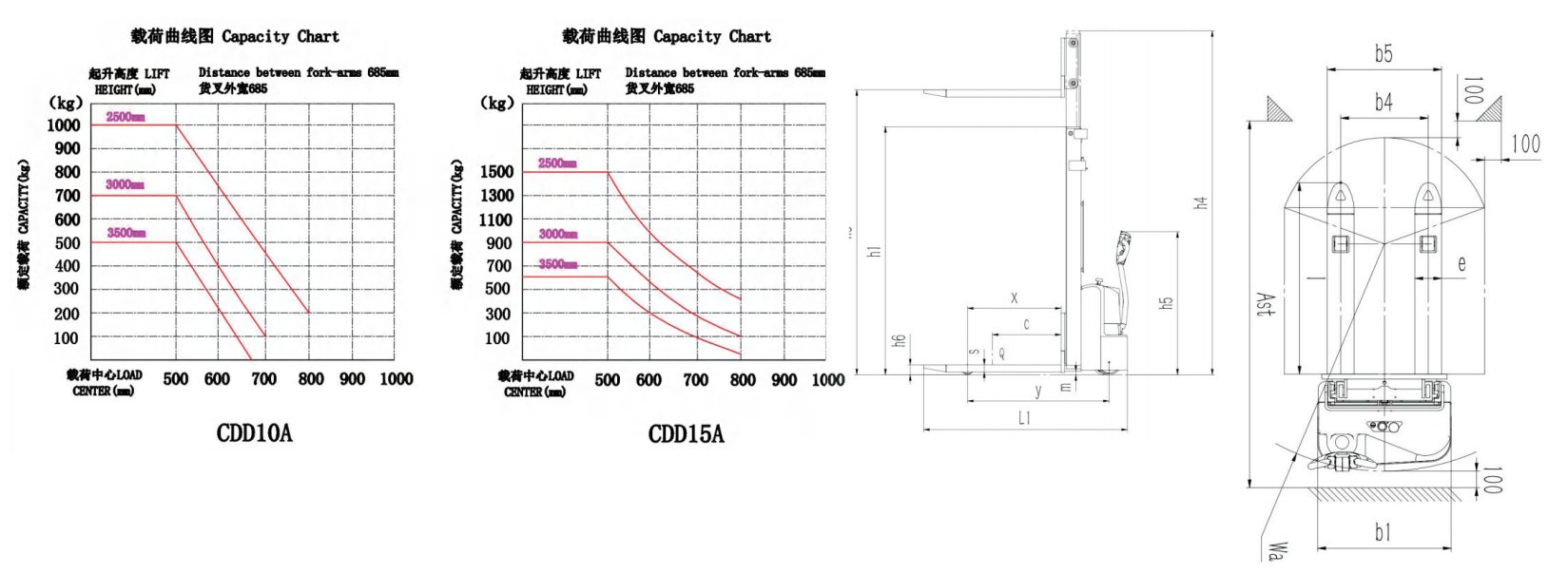

| Model | CDD10A | CDD15A | |||||||||||||
| Type of power | Lead-acid battery | ||||||||||||||
| Driving type | Walkie type | ||||||||||||||
| Rated load | kg | 1000 | 1500 | ||||||||||||
| Lifting height | h3(mm) | 2500 | 2500 | ||||||||||||
| Overall length | L1(mm) | 1706 | 1706 | ||||||||||||
| Overall width | b1(mm) | 800 | 800 | ||||||||||||
| Fork dimensions | s/e/(mm) | 60/160/1150 | 60/160/1150 | ||||||||||||
| Outside width of forks | b5(mm) | 685 | 685 | ||||||||||||
| Mast closed height | h1(mm) | 1830 | 1830 | ||||||||||||
| The maximum height of the mast during liting(including load backrest) | h4(mm) | 3060 | 3060 | ||||||||||||
| Height of fork off the ground(minimum) | h6(mm) | 85 | 85 | ||||||||||||
| Height of vehicle off the ground(minimum) | m(mm) | 30 | 30 | ||||||||||||
| Height of the operating handle | h5(mm) | 1190 | 1190 | ||||||||||||
| Battery,voltage/capacity | V/Ah | 24/80 | 24/80 | ||||||||||||
| Weight of battery | kg | 50 | 50 | ||||||||||||
| Vehicle weight (including battery) | kg | 605 | 605 | ||||||||||||
| Drivingmotor power | kw | 0.75 | 0.75 | ||||||||||||
| Tire | Polyurethane | ||||||||||||||
| Dimensions of drive wheel | mm | φ210×70 | p210×70 | ||||||||||||
| Dimensions of bear wheel | mm | φ85×70 | φ85×70 | ||||||||||||
| Dimensions of balance wheel | mm | φ130x55 | φ130×55 | ||||||||||||
| Number of wheels(front/back)(x=drive wheel | mm | 2/1+1x | 2/1+1x | ||||||||||||
| Front wheel track | b4(mm) | 525 | 525 | ||||||||||||
| Wheelbase | y(mm) | 1185 | 1185 | ||||||||||||
| Load Center | c(mm) | 500 | 500 | ||||||||||||
| Front overhang | x(mm) | 783 | 783 | ||||||||||||
| Turn radius | Wa(mm) | 1365 | 1365 | ||||||||||||
| Stacking channel width,pallet 1000X1200(1200 transverse) | Ast(mm) | 2205 | 2205 | ||||||||||||
| Stacking channel width,pallet 800X1200(1200 vertical) | Ast(mm) | 2145 | 2145 | ||||||||||||
| Full-load axle load,drive side/bear side | kg | 685/920 | 805/1300 | ||||||||||||
| No-load axle load,drive side/bear side | kg | 430/175 | 430/175 | ||||||||||||
| Driving speed,full load/no load | km/h | 3.5/4 | 3/3.6 | ||||||||||||
| Maximum climb,full load/no load | % | 4/6. | 3/6. | ||||||||||||
| Noise level | dB(A) | 68 | 68 | ||||||||||||
| Note:when the outside width of the fork is 560,the load curve of the lifing height shuold reduce 200kg load capacity. | |||||||||||||||

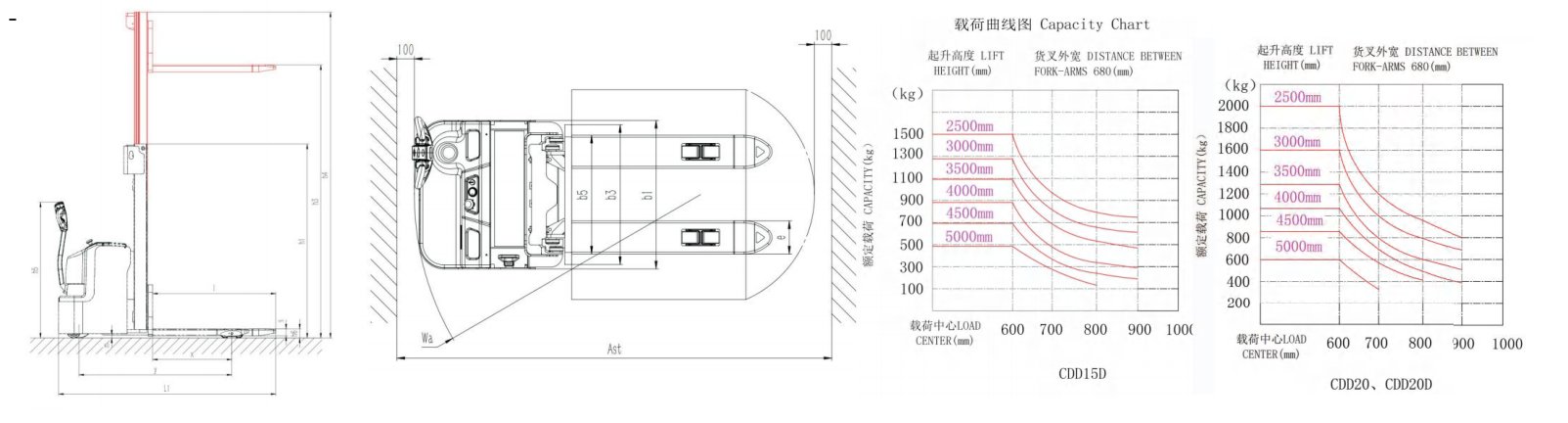

| Model | CDD15D-25 | CDD20D-25 | |||||||||||||
| Type of power | Lead-acid battery | ||||||||||||||
| Driving type | Walkie type | ||||||||||||||
| Rated load | Q(kg) | 1500 | 2000 | ||||||||||||
| Lifting height | h3(mm) | 2500 | 2500 | ||||||||||||
| Overall length | L1(mm) | 2030 | 2030 | ||||||||||||
| Overall width | b1/b2 | 850 | 850 | ||||||||||||
| Fork dimensions | s/e/l(mm) | 65/190/1150 | 65/190/1150 | ||||||||||||
| Outside width of forks | b5(mm) | 680 | 680 | ||||||||||||
| Inside width of forks | b4(mm) | 370 | 370 | ||||||||||||
| Mast closed height | h1(mm) | 1810 | 1810 | ||||||||||||
| Maximum height of mast during lifing(including load backrest) | h4(mm) | 3041 | 3041 | ||||||||||||
| Load backrest width | b3(mm) | 800 | 800 | ||||||||||||
| Heigh of fork off the ground(minimum) | h6(mm) | 86-88 | 86-88 | ||||||||||||
| Height of vehicle off the ground(minimum) | m(mm) | 30 | 30 | ||||||||||||
| Height of the operating handle | h5(mm) | 1270 | 1270 | ||||||||||||
| Battery,voltage/capacity | V/Ah | 24/100 | 24/100 | ||||||||||||
| Weight of battery | kg | 70 | 70 | ||||||||||||
| Vehicle weight(including battery) | kg | 870 | 880 | ||||||||||||
| Driving motor power (S2-60MIN) | kw | 1.5(AC) | 1.5(AC) | ||||||||||||
| Lifting motor power | kw | 2.2 | 2.2 | ||||||||||||
| Tire | Polyurethane | ||||||||||||||
| Dimensions of drive wheel | mm | φ250x80 | φ250x80 | ||||||||||||
| Dimensions of bear wheel | mm | φ85×70 | φ85×70 | ||||||||||||
| Dimensions of balance wheel | mm | φ130x55 | φ130x55 | ||||||||||||
| Number of wheels,front/rear(x=drive wheel) | 4/1X-1 | 4/1X-1 | |||||||||||||
| Wheel track,drive side | mm | 545 | 545 | ||||||||||||
| Wheel track,bear side | mm | 490 | 490 | ||||||||||||
| wheelbase | y(mm) | 1427 | 1427 | ||||||||||||
| Load center | C(mm) | 600 | 600 | ||||||||||||
| Front overhang | x(mm) | 740 | 740 | ||||||||||||
| Turning radius | Wa(mm) | 1644 | 1644 | ||||||||||||
| Stacking channel width (pallet 1000x1200)1200 across forks | Ast(mm) | 2498 | 2498 | ||||||||||||
| Stacking channel wdth (pallet 800x1200)1200 along the forks | Ast(mm) | 2454 | 2454 | ||||||||||||
| Full-load axle load,drive side/bear side | kg | 718/1652 | 769/2111 | ||||||||||||
| No-load axle load,drive side/bear side | kg | 576/294 | 583/297 | ||||||||||||
| Driving speed,full load/no load | km/h | 3.5/4.0 | 3.5/4.0 | ||||||||||||
| Lifting speed,full load/no load | mm/s | 85/125 | 80/125 | ||||||||||||
| Descent speed,full load/no load | mm/s | 155/105 | 160/105 | ||||||||||||
| Maximum climbing,full load/no load (S2-5min) | % | 6/10 | 6/10 | ||||||||||||
| Braking type | Electromagnetic brake | ||||||||||||||
| Steering type | Mechanical steering | ||||||||||||||
| Battery replacement method | Liting typel | ||||||||||||||
