PRODUCT DETAILS
| Model | CDD15 CDD20 | |||||||||||||||||
| Type of power | Lead-acid battery | |||||||||||||||||
| Driving type | ()(Stand-on Pedal model) | |||||||||||||||||
| Rated load | Q(kg) | 1500 | 2000 | |||||||||||||||
| Lifting height | mm | 2500 | 2500 | |||||||||||||||
| Overall length:Pedal retracted/down | L1(mm) | 2115/2515 | 2115/2515 | |||||||||||||||
| Overall width | b1/b2 | 850/ | 850/\ | |||||||||||||||
| Fork dimensions | s/e/l(mm) | 65/190/1150 | 65/190/1150 | |||||||||||||||
| Outside width of forks | b5(mm) | 680 | 680 | |||||||||||||||
| Inside width of support legs | b4(mm) | 370 | 370 | |||||||||||||||
| Mast closed height | h1(mm) | 1735 | 1735 | |||||||||||||||
| Free lifting height | h2(mm) | |||||||||||||||||
| Maximum height of mast during lifting(including load backrest) | h4(mm) | 2980 | 2980 | |||||||||||||||
| Width of load backrest | b3(mm) | 800 | 800 | |||||||||||||||
| Height of station board | h7(mm) | 140 | 140 | |||||||||||||||
| Height of fork off the ground | h6(mm) | 86-88 | 86-88 | |||||||||||||||
| Height of vehicle off the ground | m(mm) | 29 | 29 | |||||||||||||||
| Height of the operating handle | h5(mm) | 1510 | 1510 | |||||||||||||||
| Battery,voltage/capacity | V/Ah | 24/210 | 24/210 | |||||||||||||||
| Weight of battery | kg | 190 | 190 | |||||||||||||||
| Vehicle weight(including battery) | kg | 1100 | 1100 | |||||||||||||||
| Driving motor Power (S2-60MIN) | kw | 1.6(AC) | 1.6(AC) | |||||||||||||||
| Lifting motor power | kw | 2.2 | 2.2 | |||||||||||||||
| Tire | Polyurethane | |||||||||||||||||
| Tire dimensions,drive wheel | mm | φ230×75 | φ230x75 | |||||||||||||||
| Tire dimensions,bear wheel | mm | φ85×70 | φ85×70 | |||||||||||||||
| Dimensions of balance wheel | mm | φ130x55 | φ130x55 | |||||||||||||||
| Number of wheels,front/rear(x=drive wheel) | 4/1X-2 | 4/1X-2 | ||||||||||||||||
| Wheel track,drive side | mm | 604 | 604 | |||||||||||||||
| Wheel track,bear side | mm | 490 | 490 | |||||||||||||||
| Wheel base,balance wheel side | mm | |||||||||||||||||
| wheelbase | y(mm) | 1426 | 1426 | |||||||||||||||
| Load center | C(mm) | 600 | 600 | |||||||||||||||
| Front overhang | x(mm) | 738 | 738 | |||||||||||||||
| Turning radius Pedal retracted/down | Wa(mm) | 1720/2115 | 1720/2115 | |||||||||||||||
| Stacking channel width(pallet 1000×1200)1200 straddle fork pedal is retracted/down | Ast(mm) | 2580/2970 | 2580/2970 | |||||||||||||||
| Stackingchannel width(pallet 800x1200)1200 along fork pedal retracted/down | Ast(mm) | 2530/2925 | 2530/2925 | |||||||||||||||
| Full-load axle load,drive side/bear side | kg | 900/1700 | 948/2152 | |||||||||||||||
| No-load axle load,drive side/bear side | kg | 760/340 | 760/340 | |||||||||||||||
| Driving speed,full load/no load | km/h | 4.8/5.0 | 4.0/5.0 | |||||||||||||||
| Lifting speed,full load/no load | mm/s | 100/150 | 100/150 | |||||||||||||||
| Descent speed,full load/no load | mm/s | 150/105 | 150/105 | |||||||||||||||
| Maximum climbing,full load/no load (S2-5MIN) | %6 | 6/8 | 6/8 | |||||||||||||||
| Braking type | Electromagnetic brake | |||||||||||||||||
| Steering type | Electronic steering | |||||||||||||||||
| Battery replacement method | Lifting type | |||||||||||||||||

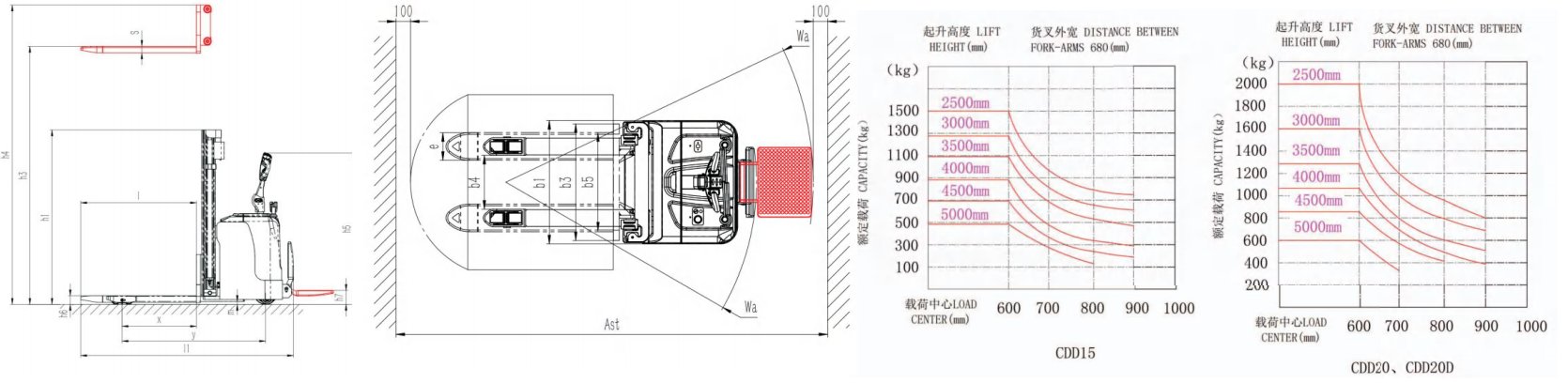

Note: 1. The above load curves are for CDD15 and CDD20 with an outer fork distance of 680mm, and for CDD25 with an outer fork distance of 715mm. 2. When the outer fork distance is 560mm, CDD15 will not experience unloaded load at lifting heights H of 1600-2500mm. At lifting heights H of 2500-5000mm, the load will be reduced by 150kg based on the standard load curve. 3. When the outer fork distance is 560mm, CDD20 will experience a reduced load of 200kg based on the standard load curve at lifting heights H of 1600-5000mm. | ||||||||||||||||||
| Model | CDD20 | CDD25 | ||||||||||||||||
| Type of power | Lead-acid battery | |||||||||||||||||
| Driving type | ()( (Stand-on Pedal model) | |||||||||||||||||
| Rated load | Q(kg) | 2000 | 2500 | |||||||||||||||
| Lifting height | mm | 4500 | 2500 | |||||||||||||||
| Overall length:Pedal retracted/down | L1(mm) | 2160/2560 | 2157/2557 | |||||||||||||||
| Overall width | b1/b2 | 850/1360 | 850/1360 | |||||||||||||||
| Fork dimensions | s/e/l(mm) | 65/190/1150 | 65/205/1150 | |||||||||||||||
| Outside width of forks | b5(mm) | 685 | 715 | |||||||||||||||
| Inside width of support legs | b4(mm) | 370 | 305 | |||||||||||||||
| Mast closure height | h1(mm) | 2090 | 1830 | |||||||||||||||
| Free lifting height | h2(mm) | 1585 | \ | |||||||||||||||
| Maximum height of mast during lifting(including load backrest) | h4(mm) | 5050 | 3085 | |||||||||||||||
| Width of load backrest | b3(mm) | 800 | 840 | |||||||||||||||
| Height of station board | h7(mm) | 140 | 140 | |||||||||||||||
| Height of fork off the ground | h6(mm) | 86-88 | 88 | |||||||||||||||
| Height of vehicle off the ground | m(mm) | 29 | 29 | |||||||||||||||
| Height of operating handle | h5(mm) | 1510 | 1510 | |||||||||||||||
| Battery,voltage/capacity | V/Ah | 24/210 | 24/280 | |||||||||||||||
| Weight of battery | kg | 190 | 190 | |||||||||||||||
| Vehicle weight(including battery) | kg | 1200 | 1280 | |||||||||||||||
| Driving motor Power(S2-60MIN) | kw | 1.6(AC) | 2.2(AC) | |||||||||||||||
| Lifting motor power | kw | 3 | 3 | |||||||||||||||
| Tire | Polyurethane | |||||||||||||||||
| Tire dimensions,drive wheel | mm | p230x75 | φ230x75 | |||||||||||||||
| Tire dimensions,bear wheel | mm | φ85x70 | φ85×70 | |||||||||||||||
| Dimensions of balance wheel | mm | φ130×55 | φ130x55 | |||||||||||||||
| Number of wheels,front/rear(x=drive wheel) | 4/1X-4 | 4/1X-4 | ||||||||||||||||
| Wheel base,drive side | mm | 604 | 604 | |||||||||||||||
| Wheel base,load-bear sides | mm | 490 | 510 | |||||||||||||||
| Wheel base,outer balancewheel side | mm | 1196 | 1196 | |||||||||||||||
| wheelbase | y(mm) | 1426 | 1426 | |||||||||||||||
| Load center | C(mm) | 600 | 600 | |||||||||||||||
| Front overhang | x(mm) | 694 | 699 | |||||||||||||||
| Turning radius pedal retracted/down | Wa(mm) | 1720/2112 | 1720/2112 | |||||||||||||||
| Stacking channel width(pallet 1000x1200)1200 straddle fork pedal retracted/down | Ast(mm) | 2600/2990 | 2590/2983 | |||||||||||||||
| Stackng channel width(pallet 800×1200)1200 along fork pedal retracted/down | Ast(mm) | 2565/2960 | 2560/2953 | |||||||||||||||
| Full-load axle load,drive side/bear side | kg | 898/2302 | 1026/2754 | |||||||||||||||
| No-load axle load,drive side/bear side | kg | 780/420 | 856/424 | |||||||||||||||
| Driving speed,full load/no load | km/h | 4.0/5 | 4.0/5.0 | |||||||||||||||
| Lifting speed,full load/no load | mm/s | 90/135 | 80/125 | |||||||||||||||
| Descent speed,full load/no load | mm/s | 155/105 | 160/105 | |||||||||||||||
| Maximum climbing,full load/no load (S2-5MIN) | % | 5/8 | 4/8 | |||||||||||||||
| Braking type | Electromagnetic brake | |||||||||||||||||
| Steering type | Electronic steering | |||||||||||||||||
| Battery replacement method | Lifing type | |||||||||||||||||

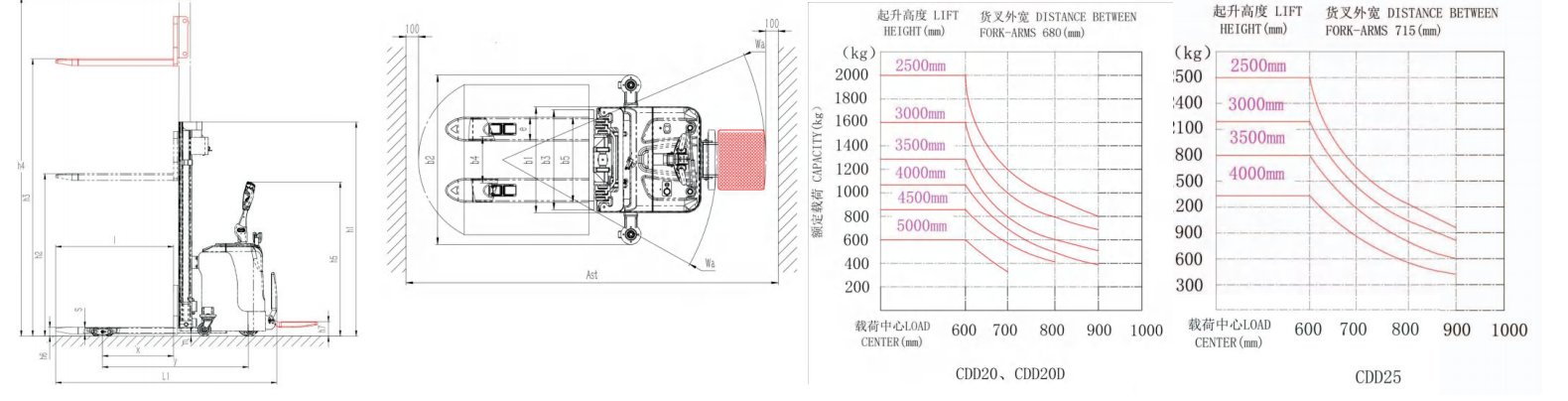

Note: 1. The above load curves are for CDD15 and CDD20 with an outer fork distance of 680mm, and for CDD25 with an outer fork distance of 715mm. 2. When the outer fork distance is 560mm, CDD15 will not experience underload at lifting heights H1600-2500mm; at lifting heights H2500-5000mm, the load will be reduced by 150kg based on the standard load curve. 3. When the outer fork distance is 560mm, CDD20 will experience a reduction of 200kg based on the standard load curve at lifting heights H1600-5000mm. | ||||||||||||||||||
