3–3.8 Ton Heavy-Duty Diesel Forklift Truck
Maintenance-free one-piece cast axle.
Large-capacity oil tank for faster heat dissipation; dual filter elements ensure clean hydraulic circuits.
Electrophoretic coating process for the chassis roof guard, ensuring rust-free operation for 10 years and maintaining oil tank cleanliness.
Independent coolant and hydraulic oil radiators for the hydraulic system, preventing engine overheating.
Standard Toyota-style shock-absorbing seat reduces driver fatigue.
Forged mast tilting cylinder seat enhances mast safety.
Lifting cylinder features a lowering buffer design and uses Japanese NOK oil seals.
Engine hood opening angle reaches 80°; combined with the hood's design, maintenance space is further increased.
Reinforced wheel rims reduce rim installation eccentricity, optimize rim structure, enhance load-bearing capacity, and provide greater peace of mind.
Small-diameter steering wheel significantly reduces driver hand and shoulder strain, easily handling various working conditions.
Non-slip and durable entry pedals with 20% increased space, suitable for different user body types. 12. The engine features a high-position independent air intake, effectively preventing dust from entering.
A high-flow air filter reduces intake resistance and extends engine life.
Optimized hydraulic hose layout with 24° conical seals at hose joints reduces oil leakage.
Hydraulic hose burst protection and forward tilt self-locking protection functions.
3-3.5-3.8T Diesel Parameter Table
| Feature |
| CPC(D)30 | CPC(D)35 | CPC(D)38 |
| Model |
|
| CPC(D)30 | CPC(D)35 | CPC(D)38 |
| Power Type |
|
| Diesel | Diesel | Diesel |
| Rated Load |
| kg | 3000 | 3500 | 3800 |
| Load Center |
| mm | 500 | 500 | 600 |
| Driving Style |
| / | Sit-on type | Sit-on type | Sit-on type |

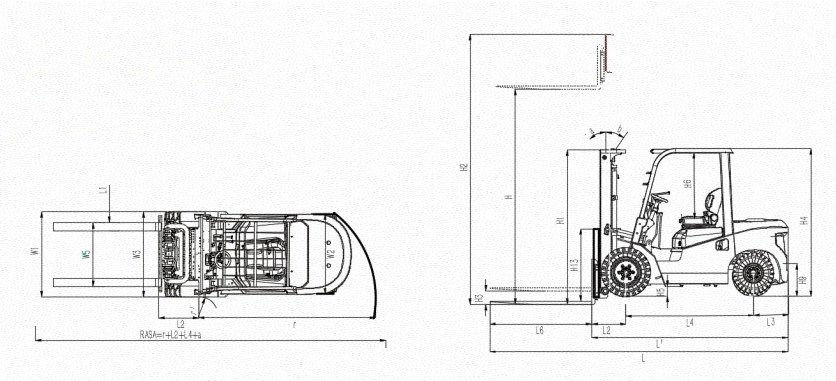

| Size |
| Maximum lifting height | H | mm | 3000 | 3000 | 3000 |
| Mast ground clearance | H1 | mm | 2060 | 2060 | 2060 |
| Maximum fork lift height | H2 | mm | 4230 | 4230 | 4230 |
| Free lifting height | H3 | mm | 100 | 100 | 100 |
| Full Height (Cage) | H4 | mm | 2128 | 2128 | 2128 |
| Minimum Ground Clearance (At mast) | H5 | mm | 140 | 140 | 140 |
| Distance From seat cushion to overhead guard | H6 | mm | 945 | 945 | 945 |
| Fifth Wheel Height | H9 | mm | 570 | 570 | 570 |
| High shelf guard | H13 | mm | 1185 | 1185 | 1185 |
| Overall length (with forks / without forks) | L/L' | mm | 4040/2810 | 4040/2810 | 4040/2850 |
| Wheelbase | L4 | mm | 1830 | 1830 | 1830 |
| Front Overhang | L2 | mm | 465 | 465 | 465 |
| Rear Overhang | L3 | mm | 510 | 510 | 510 |
| Full Width | W1 | mm | 1224 | 1224 | 1224 |
| Rack (Front Track / Rear Track) | W3/W2 | mm | 1000/990 | 1000/990 | 1000/990 |
| Outside of fork spacing | W5 | mm | 1100 | 1100 | 1100 |
| Minimum Turning Radius | r | mm | 2450 | 2450 | 2450 |
| Mast Tilt Angle | a/b | deg | 6°/12° | 6°/12° | 6°/12° |
| Fork Dimensions | L1 | mm | 1220*122*45 | 1220*122*45 | 1220*122*45 |
| Performance |
| Maximum speed (Fully loaded / Empty) |
| km/h | 18/19 | 18/19 | 18/19 |
| Lifting speed (Full load / Empty load) |
| mm/s | 440/480 | 440/480 | 440/480 |
| Maximum tractive force (fully loaded) |
| kN | 10.8/9.8 | 10.8/9.8 | 10.8/9.8 |
| Maximum gradeability (Full load / Empty load) |
| % | 20/20 | 20/20 | 20/20 |
| Weight |
| Total weight |
| kg | 4220 | 4420 | 4820 |
| Wheels and Tires |
Number of wheels X=Drive wheels
(Front / Rear) |
| / | 2X/2 | 2X/2 | 2X/2 |
| Tire Type (Front / Rear) |
| / | Pneumatic:tyre | Pneumatic:tyre | Pneumatic:tyre |
| Tire Size (Front / Rear) |
| / | 28x9-15/
6.50-10 | 28x9-15/
6.50-10 | 28x9-15/
6.50-10 |
| Service Brake |
| / | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type |
| Parking Brake |
| / | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever |
| Drive and transmission control device |
| Battery (Voltage / Capacity) |
| V/Ah | 12/80 | 12/80 | 12/80 |
| Engine Manufacturer/Model |
|
| XinchaiC490BPG | XinchaiC490BPG | XinchaiC495BPG |
| Rated engine power |
| KW/rpm | 40/2650 | 40/2650 | 42/2650 |
| Engine fuel tank capacity |
| L | 57 | 57 | 57 |
| Emission standards |
| / | National 2 | National 2 | National 2 |
| Transmission gear number (forward/reverse type) |
| / | mechanical vehicle2/1
Hydraulic car1/1 | mechanical vehicle2/1
Hydraulic car1/1 | mechanical vehicle2/1
Hydraulic car1/1 |
| rated engine power |
| KW/rpm | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type |
| rated engine torque |
| KW/rpm | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever |
| 2-3.8T secondary gantry |
| Gantry type | Maximum lifting height(mm) | Load-bearing capacity (load center at 500mm)(kg) | Full height of mast(mm) | Free-lift rack (with guardrail)(mm) |
|
| CPC(D)30 | CPC(D)35 | CPC(D)38 | 3T/3.5T/3.8T | 2T-3.8T |
| M300 | 3000 | 3000 | 3500 | 3800 | 2075 | 100 |
| M350 | 3500 | 3000 | 3500 | 3800 | 2320 | 100 |
| M400 | 4000 | 3000 | 3500 | 3800 | 2620 | 100 |
| 2-3.8T three-stage fully free gantry |
| Gantry type | Maximum lifting height(mm) | Load-bearing capacity (load center at 502mm)(kg) | Full height of mast(mm) | Free-lift rack (with guardrail)(mm) |
|
| CPC(D)30 | CPC(D)35 | CPC(D)38 | 3T/3.5T/3.8T | 3T/3.5T | 3.8T |
| ZSM450 | 4500 | 2700 | 3400 | 3600 | 2125 | 895 | 895 |
| ZSM500 | 5000 | 2400 | 2800 | 3000 | 2290 | 1060 | 1060 |
| ZSM550 | 5500 | 2400 | 2600 | 2700 | 2455 | 1225 | 1225 |
| ZSM600 | 6000 | 2200 | 2350 | 2430 | 2675 | 1445 | 1445 |
