PRODUCT DETAILS
| Model | TS100 | |
| Performance | Operating weight（kg） | 4700 |
| Rated load（kg） | 1200 | |
| Lateral load（kg） | 3055 | |
| Bucket capacity（m³） | 0.6 | |
| Max traction（kN） | >30 | |
| Max breakout（kN） | ≥20 | |
| Lifting time of boom（s） | 7 | |
| Rated flux (L/min) | 80 | |
| High Flow Flux (L/min) | 140 | |
| Tire（track） model | 320X86 | |
| Fuel tank capacity (L) | 90 | |
| Max Speed（km/h） | 12-18 | |
| Engine | Manufacturer | Weichai |
| Model | WP4.1 | |
| Rated power （kW/rpm） | 74/2200 | |
| Engine displacement（L） | 4.088 | |
| Emission Standard | China Stage III | |
| Dimension | Overall operating height （mm） | 4070 |
| Height to bucket hinge pin （mm） | 3150 | |
| Height to top of cab （mm） | 2160 | |
| Height to bottom of level bucket（mm） | 2983 | |
| Without bucket length（mm） | 3000 | |
| Overall length with bucket（mm） | 3795 | |
| Dumping angle at maximum height（°） | 40 | |
| Dumping height（mm） | 2450 | |
| Dumping reach（mm） | 700 | |
| Rollback of bucket on ground（°） | 30 | |
| Rollback of bucket at full height（°） | 104 | |
| Wheelbase（mm） | 1500 | |
| Ground clearance（mm） | 200 | |
| Angle of departure（°） | 20 | |

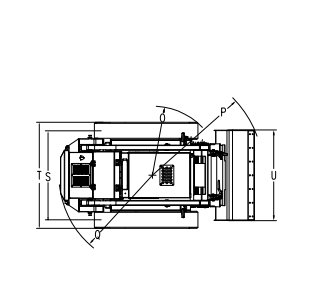

| Front turning radius without bucket（mm） | 1365 | |
| Front tuning radius（mm） | 2439 | |
| Rear tuning radius（mm） | 1617 | |
| Rear axle to bumper （mm） | 938 | |
| Tread width （mm） | 1654 | |
| Width (mm) | 1994 | |
| Bucket width （mm） | 2030 |
