PRODUCT DETAILS
| Model | JC25 | |
| Performance | Operating weight（kg） | 1300 |
| Rated load（kg） | 380 | |
| Lateral load（kg） | 845 | |
| Bucket capacity（m³） | 0.2 | |
| Max traction（kN） | ≥12 | |
| Max breakout（kN） | ≥7.3 | |
| Lifting time of boom（s） | 7 | |
| Rated flux (L/min) | 50 | |
| High Flow Flux (L/min) | / | |
| Tire（track） model | 6.50-10 | |
| Fuel tank capacity (L) | 28 | |
| Max Speed（km/h） | 8 | |
| Engine | Manufacturer | Kubota/Perkins |
| Model | D1105/403J-11 | |
| Rated power （kW/rpm） | 18.2/3000 | |
| Engine displacement（L） | 1.123 | |
| Emission Standard | Euro V/EPA4 | |

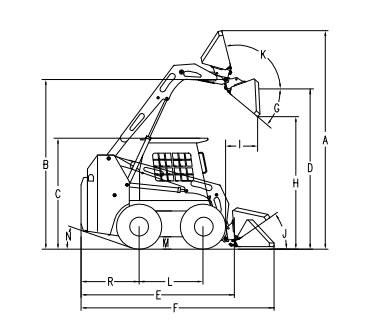

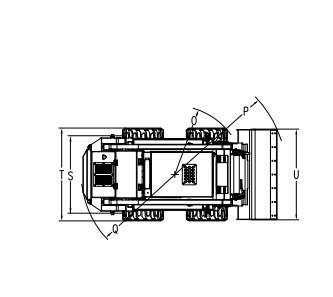

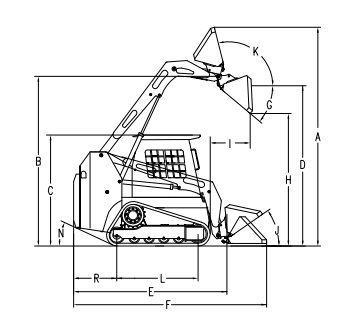

| Dimension | Overall operating height （mm） | 3400 |
| Height to bucket hinge pin （mm） | 2500 | |
| Height to top of cab （mm） | 1813 | |
| Height to bottom of level bucket（mm） | 2446 | |
| Without bucket length（mm） | 2200 | |
| Overall length with bucket（mm） | 2950 | |
| Dumping angle at maximum height（°） | 40 | |
| Dumping height（mm） | 2000 | |
| Dumping reach（mm） | 441 | |
| Rollback of bucket on ground（°） | 30 | |
| Rollback of bucket at full height（°） | 103 | |
| Wheelbase（mm） | 801 | |
| Ground clearance（mm） | 145 | |
| Angle of departure（°） | 20 | |
| Front turning radius without bucket（mm） | 960 | |
| Front tuning radius（mm） | 1660 | |
| Rear tuning radius（mm） | 1253 | |
| Rear axle to bumper （mm） | 910 | |
| Tread width （mm） | 785 | |
| Width (mm) | 920 | |
| Bucket width （mm） | 1070 |
