PRODUCT DETAILS
| Model | JC45 | |
| Performance | Operating weight（kg） | 3000 |
| Rated load（kg） | 700 | |
| Lateral load（kg） | 1950 | |
| Bucket capacity（m³） | 0.4 | |
| Max traction（kN） | ≥25.40 | |
| Max breakout（kN） | ≥18.4 | |
| Lifting time of boom（s） | 7 | |
| Rated flux (L/min) | 62.5 | |
| High Flow Flux (L/min) | / | |
| Tire（track） model | 10-16.5 | |
| Fuel tank capacity (L) | 70 | |
| Max Speed（km/h） | 11 | |
| Engine | Manufacturer | Xinchai |
| Model | C490BPG | |
| Rated power （kW/rpm） | 36.7/2650 | |
| Engine displacement（L） | 2.27 | |
| Emission Standard | China Stage II | |

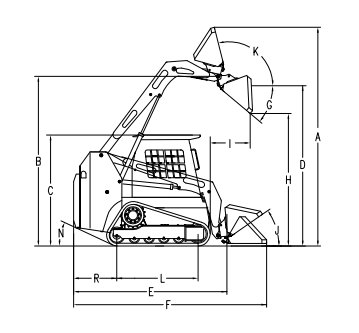

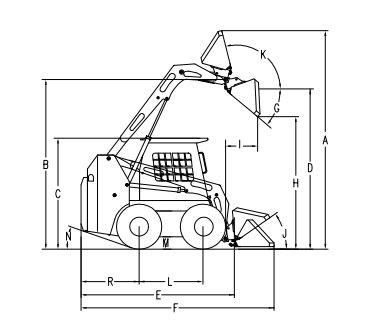

| Dimension | Overall operating height （mm） | 3980 |
| Height to bucket hinge pin （mm） | 3080 | |
| Height to top of cab （mm） | 2140 | |
| Height to bottom of level bucket（mm） | 2913 | |
| Without bucket length（mm） | 2640 | |
| Overall length with bucket（mm） | 3420 | |
| Dumping angle at maximum height（°） | 40 | |
| Dumping height（mm） | 2380 | |
| Dumping reach（mm） | 700 | |
| Rollback of bucket on ground（°） | 30 | |
| Rollback of bucket at full height（°） | 104 | |
| Wheelbase（mm） | 1075 | |
| Ground clearance（mm） | 185 | |
| Angle of departure（°） | 20 | |

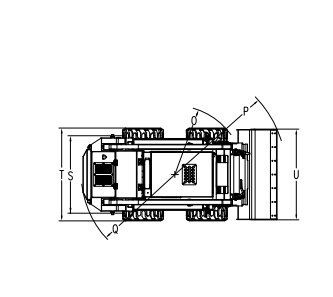

| Front turning radius without bucket（mm） | 1300 | |
| Front tuning radius（mm） | 2290 | |
| Rear tuning radius（mm） | 1440 | |
| Rear axle to bumper （mm） | 1080 | |
| Tread width （mm） | 1450 | |
| Width (mm) | 1720 | |
| Bucket width （mm） | 1740 |
