PRODUCT DETAILS
| Model | JC35 | |
| Performance | Operating weight（kg） | 2600 |
| Rated load（kg） | 500 | |
| Lateral load（kg） | 1690 | |
| Bucket capacity（m³） | 0.3 | |
| Max traction（kN） | ≥16 | |
| Max breakout（kN） | ≥8.5 | |
| Lifting time of boom（s） | 7 | |
| Rated flux (L/min) | 60 | |
| High Flow Flux (L/min) | / | |
| Tire（track） model | 8.5-16.5 | |
| Fuel tank capacity (L) | 60 | |
| Max Speed（km/h） | 10 | |
| Engine | Manufacturer | Xinchai |
| Model | C490BPG | |
| Rated power （kW/rpm） | 36.7/2650 | |
| Engine displacement（L） | 2.27 | |
| Emission Standard | China Stage II | |

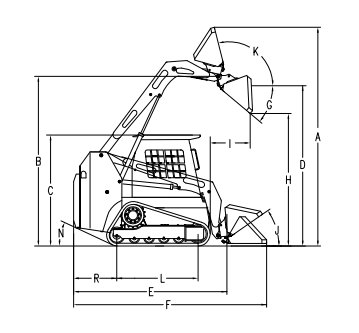

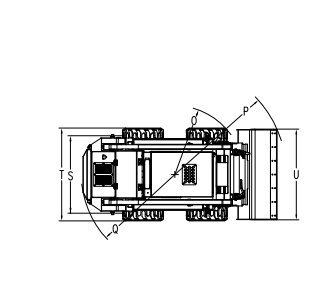

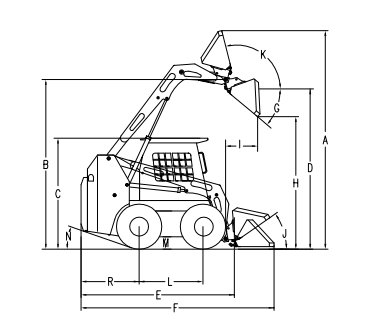

| Dimension | Overall operating height （mm） | 3300 |
| Height to bucket hinge pin （mm） | 2425 | |
| Height to top of cab （mm） | 2000 | |
| Height to bottom of level bucket（mm） | 2260 | |
| Without bucket length（mm） | 2300 | |
| Overall length with bucket（mm） | 2950 | |
| Dumping angle at maximum height（°） | 40 | |
| Dumping height（mm） | 2000 | |
| Dumping reach（mm） | 690 | |
| Rollback of bucket on ground（°） | 30 | |
| Rollback of bucket at full height（°） | 104 | |
| Wheelbase（mm） | 897 | |
| Ground clearance（mm） | 140 | |
| Angle of departure（°） | 20 | |
| Front turning radius without bucket（mm） | 1310 | |
| Front tuning radius（mm） | 1881 | |
| Rear tuning radius（mm） | 1296 | |
| Rear axle to bumper （mm） | 964 | |
| Tread width （mm） | 1080 | |
| Width (mm) | 1400 | |
| Bucket width （mm） | 1500 |
