PRODUCT DETAILS
| Model | JC75 | |
| Performance | Operating weight（kg） | 3500 |
| Rated load（kg） | 1050 | |
| Lateral load（kg） | 2275 | |
| Bucket capacity（m³） | 0.5 | |
| Max traction（kN） | ≥28.2 | |
| Max breakout（kN） | ≥20 | |
| Lifting time of boom（s） | 7 | |
| Rated flux (L/min) | 80 | |
| High Flow Flux (L/min) | 120 | |
| Tire（track） model | 12-16.5 | |
| Fuel tank capacity (L) | 75 | |
| Max Speed（km/h） | 12 | |
| Engine | Manufacturer | Xinchai |
| Model | A498BZG | |
| Rated power （kW/rpm） | 55/2500 | |
| Engine displacement（L） | 3.17 | |
| Emission Standard | China Stage II | |

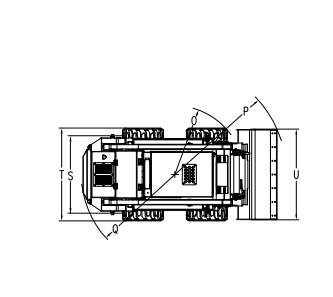

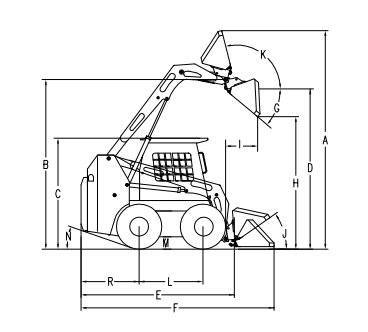

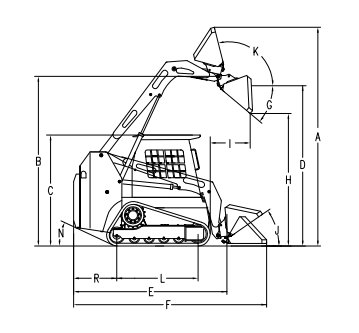

| Dimension | Overall operating height （mm） | 4290 |
| Height to bucket hinge pin （mm） | 3278 | |
| Height to top of cab （mm） | 2160 | |
| Height to bottom of level bucket（mm） | 2983 | |
| Without bucket length（mm） | 2770 | |
| Overall length with bucket（mm） | 3490 | |
| Dumping angle at maximum height（°） | 40 | |
| Dumping height（mm） | 2500 | |
| Dumping reach（mm） | 700 | |
| Rollback of bucket on ground（°） | 30 | |
| Rollback of bucket at full height（°） | 104 | |
| Wheelbase（mm） | 1115 | |
| Ground clearance（mm） | 205 | |
| Angle of departure（°） | 20 | |
| Front turning radius without bucket（mm） | 1250 | |
| Front tuning radius（mm） | 2112 | |
| Rear tuning radius（mm） | 1774 | |
| Rear axle to bumper （mm） | 1082 | |
| Tread width （mm） | 1500 | |
| Width (mm) | 1880 | |
| Bucket width （mm） | 1880 |
