PRODUCT DETAILS
| 5-5.5t Lithium-ion Battery Forklift Specifications | ||||
| Characteristics | ||||
| Model | CPD50 | CPD55 | ||
| Power Type | Storage battery | Storage battery | ||
| Rated Load | kg | 5000 | 5500 | |
| Load Center | mm | 600 | 600 | |
| Driving Style | / | Sit-on type | Sit-on type | |

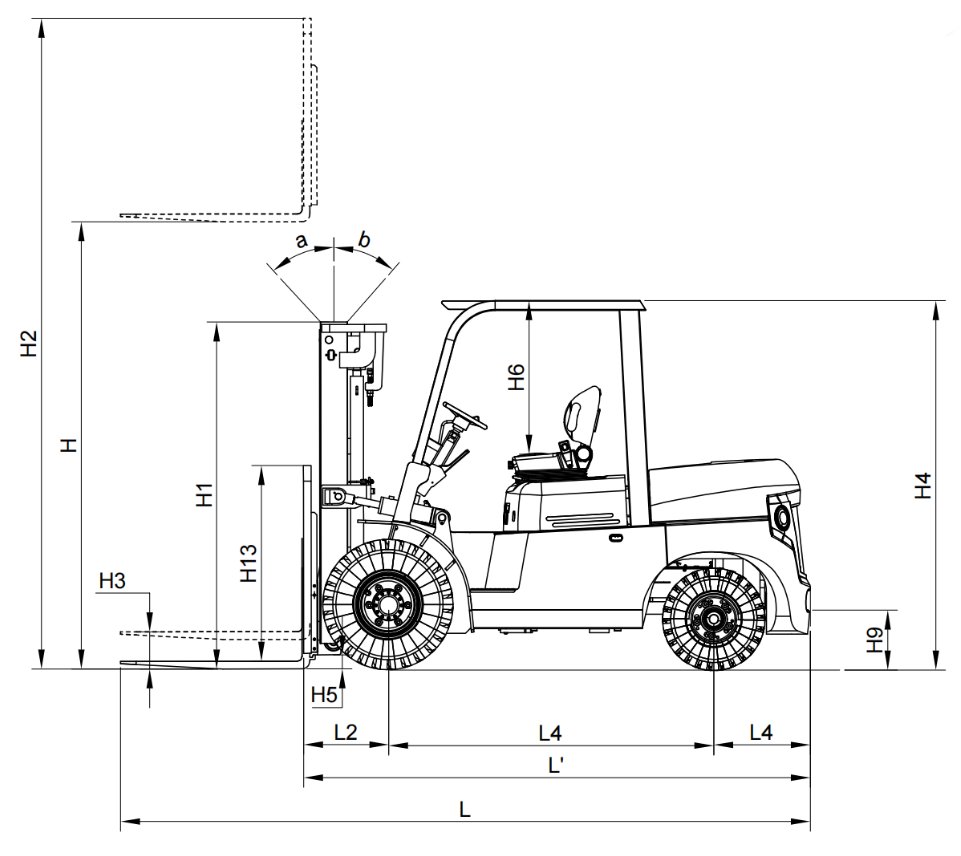

| Size | ||||
| Maximum lifting height | H | mm | 3000 | 3000 |
| Mast ground clearance | H1 | mm | 2230 | 2230 |
| Maximum lifting height | H2 | mm | 4310 | 4310 |
| Free lifting height | H3 | mm | 100 | 100 |
| Full Height (Cage) | H4 | mm | 2400 | 2400 |
| Minimum Ground Clearance (At mast) | H5 | mm | 160 | 160 |
| Distance From seat cushion to overhead guard | H6 | mm | 1020 | 1020 |
| Fifth Wheel Height | H9 | mm | 450 | 450 |
| High shelf guard | H13 | mm | 1260 | 1260 |
| Overall length (with forks / without forks) | L/L′ | mm | 4470/3240 | 4475/3245 |
| Wheelbase | L4 | mm | 2100 | 2100 |
| Front overhang / Rear overhang | L2 | mm | 566/620 | 566/620 |
| Full Width | W1 | mm | 1450 | 1450 |
| Rack (Front Track / Rear Track) | W3/W2 | mm | 1190/1196 | 1190/1196 |
| Outside of fork spacing | W5 | mm | 1380 | 1380 |
| Minimum Turning Radius | r | mm | 2990 | 2990 |
| Mast Tilt Angle | a/β | mm | 6°/12° | 6°/12° |
| Fork dimensions | L1 | mm | 1220* 150*50 | 1220* 150*50 |
| Performance | ||||
| Maximum speed (Fully loaded / Empty) | km/h | 15/16 | 15/16 | |
| Lifting speed (Full load / Empty load) | mm/s | 290/390 | 290/390 | |
| Lowering speed (Full load / Empty load) | mm/s | 460/410 | 460/410 | |
| Maximum gradeability (Full load / Empty load) | % | 15/20 | 15/20 | |
| Weight | ||||
| Total weight | kg | 5960 | 6500 | |
| Wheels and Tires | ||||
| Number of wheels X=Drive wheels (Front / Rear) | / | 2X/2 | 2X/2 | |
| Tire Type (Front / Rear) | / | Pneumatic:tyre | Pneumatic:tyre | |
| Tire Size (Front / Rear) | / | 3.00-15/ 7.00-12 | 3.00-15/ 7.00-12 | |
| Service Brake | / | Hydraulic - Pedal-type | Hydraulic - Pedal-type | |
| Parking Brake | / | Mechanical-Hand Lever | Mechanical-Hand Lever | |
| Drive and transmission control device | ||||
| Battery (Voltage / Capacity) | V/Ah | 76.8/460 | 76.8/460 | |
| Controller | A | 450/250 | 450/250 | |
| Drive Motor Power | KW | 20 | 20 | |
| Oil pump motor power | KW | 27 | 27 | |
