| Parameter table of 2-3.8 ton lithium battery forklift | |||||||
| Characteristics | |||||||
| Model | CPD20 | CPD25 | CPD30 | CPD35 | CPD38 | ||
| Power Type | Storage battery | Storage battery | Storage battery | Storage battery | Storage battery | ||
| Rated Load | kg | 2000 | 2500 | 3000 | 3500 | 3800 | |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | |
| Driving Style | / | Sit-on type | Sit-on type | Sit-on type | Sit-on type | Sit-on type | |

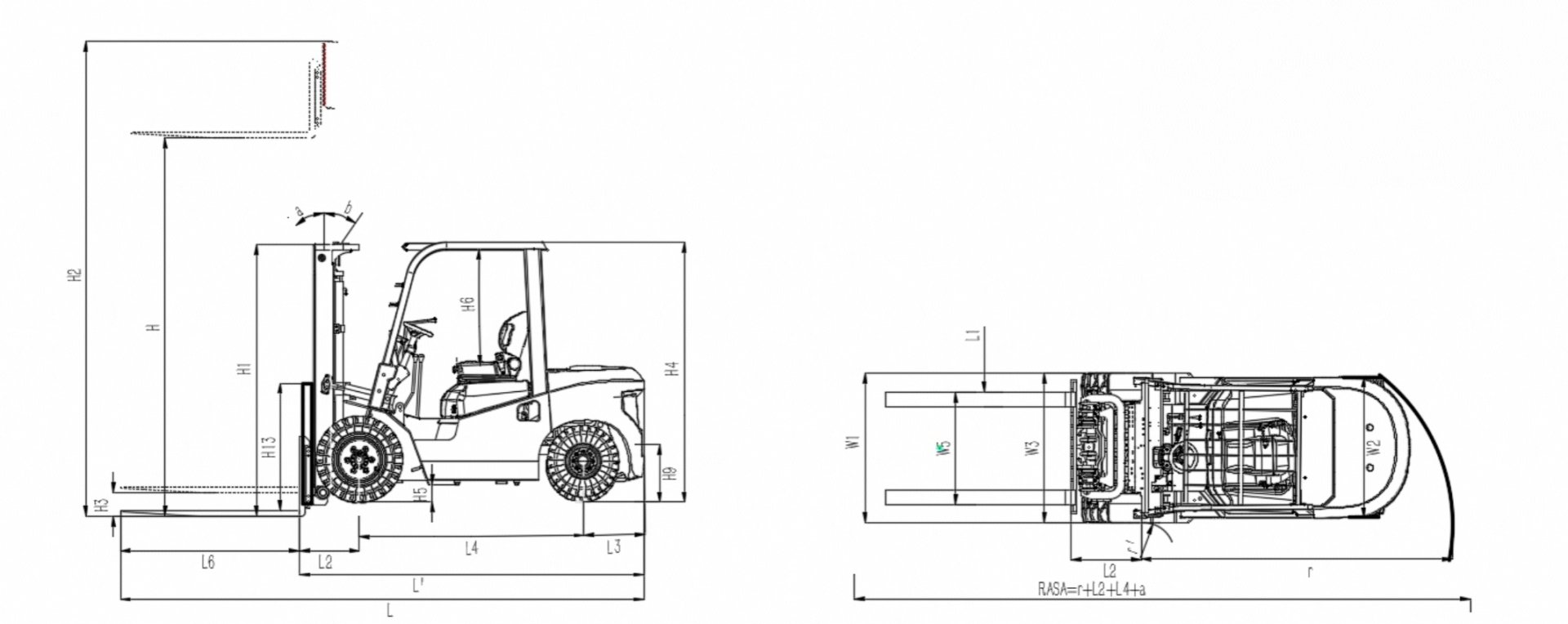

| Size | |||||||
| Maximum lifting height | H | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast ground clearance | H1 | mm | 2038 | 2038 | 2060 | 2060 | 2060 |
| Maximum lifting height | H2 | mm | 4208 | 4208 | 4230 | 4230 | 4230 |
| Free lifting height | H3 | mm | 100 | 100 | 100 | 100 | 100 |
| Full Height (Cage) | H4 | mm | 2106 | 2106 | 2128 | 2128 | 2128 |
| Minimum Ground Clearance (At mast) | H5 | mm | 110 | 110 | 140 | 140 | 140 |
| Distance From seat cushion to overhead guard | H6 | mm | 945 | 945 | 945 | 945 | 945 |
| Fifth Wheel Height | H9 | mm | 540 | 540 | 570 | 570 | 570 |
| High shelf guard | H13 | mm | 1185 | 1185 | 1185 | 1185 | 1185 |
| Overall length (with forks / without forks) | L/L′ | mm | 3675/2595 | 3675/2595 | 4040/2810 | 4040/2810 | 4045/2815 |
| Wheelbase | L4 | mm | 1650 | 1650 | 1830 | 1830 | 1830 |
| Front overhang / Rear overhang | L2 | mm | 480/460 | 480/460 | 480/510 | 480/510 | 480/510 |
| Full Width | W1 | mm | 1154 | 1154 | 1224 | 1224 | 1224 |
| Rack (Front Track / Rear Track) | W3/W2 | mm | 985/980 | 985/980 | 1000/990 | 1000/990 | 1000/990 |
| Outside of fork spacing | W5 | mm | 1100 | 1100 | 1100 | 1100 | 1100 |
| Minimum Turning Radius | r | mm | 2260 | 2260 | 2450 | 2450 | 2450 |
| Mast Tilt Angle | a/β | mm | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Fork dimensions | L1 | mm | 1220*122*45 | 1220*122*45 | 1220*122*45 | 1220*122*45 | 1220*122*45 |
| Performance | |||||||
| Maximum speed (Fully loaded / Empty) | km/h | 14/15 | 14/15 | 14/15 | 14/15 | 14/15 | |
| Lifting speed (Full load / Empty load) | mm/s | 450/300 | 450/280 | 450/300 | 450/280 | 450/280 | |
| Lowering speed (Full load / Empty load) | mm/s | 450/280 | 450/280 | 450/280 | 450/280 | 450/280 | |
| Maximum gradeability (Full load / Empty load) | % | 15/20 | 15/20 | 15/20 | 15/20 | 15/20 | |
| Weight | |||||||
| Total weight | kg | 3410 | 3760 | 4200 | 4350 | 4350 | |
| Wheels and Tires | |||||||
| Number of wheels X=Drive wheels (Front / Rear) | / | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
| Tire Type (Front / Rear) | / | Pneumatic:tyre | Pneumatic:tyre | Pneumatic:tyre | Pneumatic:tyre | Pneumatic:tyre | |
| Tire Size (Front / Rear) | / | 7.00-12-12PR/ 6.00-9-10 | 7.00-12-12PR/ 6.00-9-10 | 28x9-15PR/ 6.50-10 | 28x9-15PR/ 6.50-10 | 28x9-15PR/ 6.50-10 | |
| Service Brake | / | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type | |
| Parking Brake | / | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | |
| Drive and transmission control device | |||||||
| Battery (Voltage / Capacity) | V/Ah | 76.8/205 | 76.8/205 | 76.8/200 | 76.8/200 | 76.8/200 | |
| Controller | A | 350/250 | 350/250 | 350/350 | 350/350 | 350/350 | |
| Drive Motor Power | KW | 9 | 9 | 14 | 14 | 18 | |
| Oil pump motor power | KW | 18 | 18 | 16 | 16 | 22 | |
