| Technical Specifications of Light-Duty 1.5-2.5 Ton Battery-Powered Forklifts | ||||||
| Characteristics | ||||||
| Model | Lightweight CPD15 | Lightweight CPD18 | Lightweight CPD20 | Lightweight CPD25 | ||
| Power Type | Storage battery | Storage battery | Storage battery | Storage battery | ||
| Rated Load | kg | 1500 | 1800 | 2000 | 2500 | |
| Load Center | mm | 500 | 500 | 500 | 500 | |
| Driving Style | / | Sit-on type | Sit-on type | Sit-on type | Sit-on type | |
| Size | ||||||

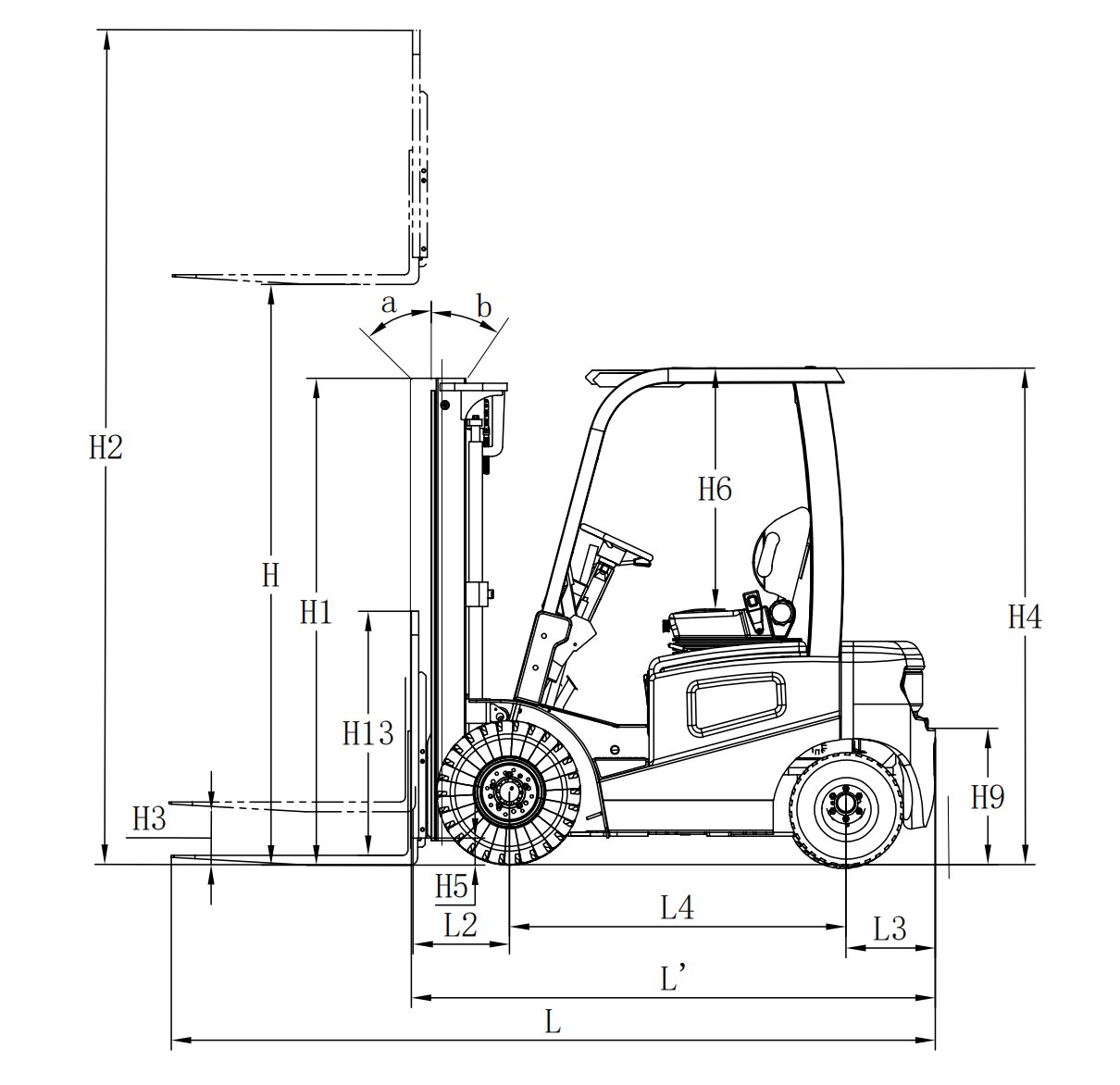

| Maximum lifting height | H | mm | 3000 | 3000 | 3000 | 3000 |
| Mast ground clearance | H1 | mm | 1995 | 1995 | 1995 | 1995 |
| Maximum lifting height | H2 | mm | 4036 | 4036 | 4036 | 4036 |
| Free lifting height | H3 | mm | 80 | 80 | 80 | 80 |
| Full Height (Cage) | H4 | mm | 2040 | 2040 | 2040 | 2040 |
| Minimum Ground Clearance (At mast) | H5 | mm | 110 | 110 | 110 | 110 |
| Distance From seat cushion to overhead guard | H6 | mm | 945 | 945 | 945 | 945 |
| Fifth Wheel Height | H9 | mm | 500 | 500 | 500 | 500 |
| High shelf guard | H13 | mm | 1000 | 1000 | 1000 | 1000 |

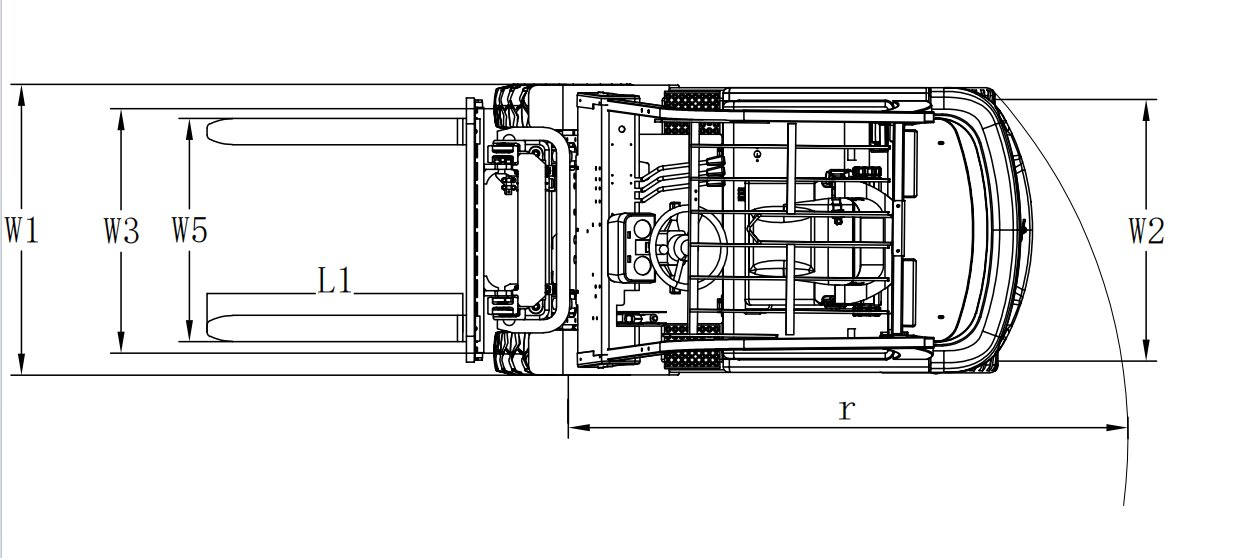

| Overall length (with forks / without forks) | L/L′ | mm | 3117/2147 | 3237/2267 | 3237/2267 | 3237/2267 |
| Wheelbase | L4 | mm | 1380 | 1500 | 1500 | 1500 |
| Front overhang / Rear overhang | L2 | mm | 416/365 | 416/365 | 416/365 | 416/365 |
| Full Width | W1 | mm | 1100 | 1100 | 1100 | 1100 |
| Rack (Front Track / Rear Track) | W3/W2 | mm | 952/952 | 952/952 | 952/952 | 952/952 |
| Outside of fork spacing | W5 | mm | 970 | 970 | 970 | 970 |
| Minimum Turning Radius | r | mm | 1990 | 2100 | 2100 | 2100 |
| Mast Tilt Angle | a/β | mm | 5°/10° | 5°/10° | 5°/10° | 5°/10° |
| Fork dimensions | L1 | mm | 920*100*35 | 920*100*35 | 920*100*35 | 920*100*35 |
| Performance | ||||||
| Maximum speed (Fully loaded / Empty) | km/h | 10/11 | 10/11 | 10/11 | 10/11 | |
| Lifting speed (Full load / Empty load) | mm/s | 250/260 | 250/260 | 250/260 | 250/260 | |
| Lowering speed (Full load / Empty load) | mm/s | 320/300 | 320/300 | 320/300 | 320/300 | |
| Maximum gradeability (Full load / Empty load) | % | 15/20 | 15/20 | 15/20 | 15/20 | |
| Weight | ||||||
| Total weight | kg | 2200 | 2300 | 2600 | 3000 | |
| Wheels and Tires | ||||||
| Number of wheels X=Drive wheels (Front / Rear) | / | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |
| Tire Type (Front / Rear) | / | Solid | Solid | Solid | Solid | |
| Tire Size (Front / Rear) | / | 6.50-10/ 5.00-8 | 6.50-10/ 5.00-8 | 6.50-10/ 5.00-8 | 6.50-10/ 5.00-8 | |
| Service Brake | / | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type | Hydraulic - Pedal-type | |
| Parking Brake | / | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | Mechanical-Hand Lever | |
| Drive and transmission control device | ||||||
| Battery (Voltage / Capacity) | V/Ah | 60/140 | 60/140 | 60/140 | 60/140 | |
| Controller | A | 300/300 | 480/300 | 480/300 | 480/300 | |
| Drive Motor Power | KW | 4 | 5 | 5 | 5 | |
| Oil pump motor power | KW | 4 | 4 | 4 | 5 | |
