5-7 Ton LPG Forklift | Propane Forklift

5-7ton LPG Forklift

(0) Reviews

Inquiry Now

Add To Cart

PRODUCT DETAILS

General	1	Model			FY50	FY60	FY70
	2	Power Type			LPG	LPG	LPG
	3	Rated Capacity		kg	5000	6000	7000
	4	Load Centre		mm	600	600	600

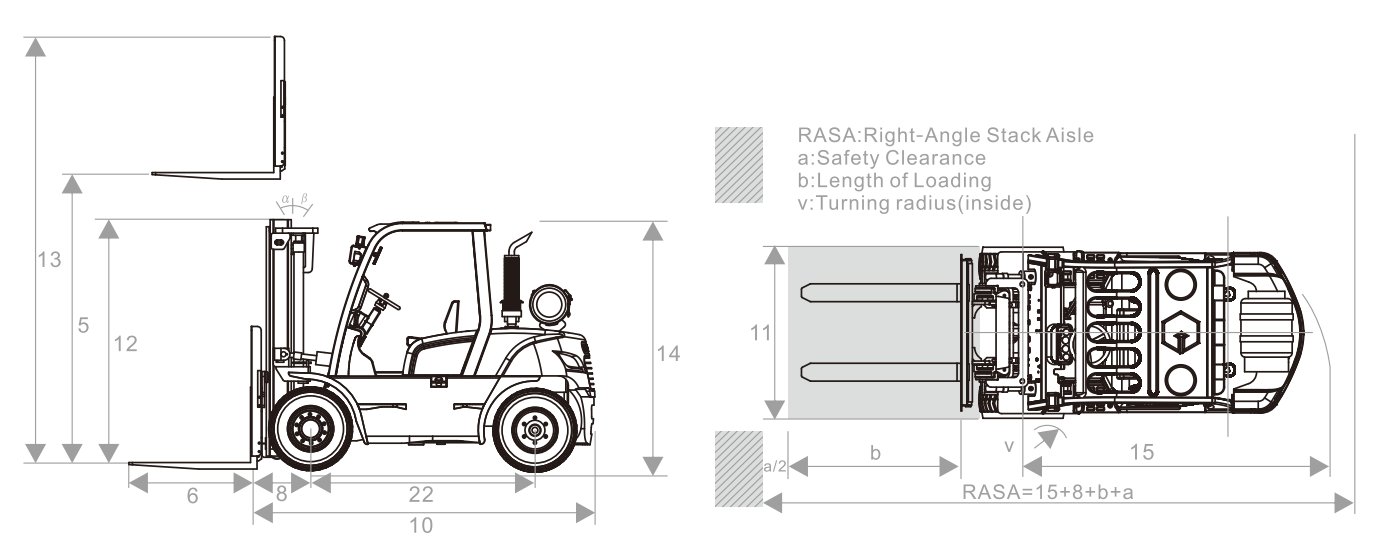

Characteristic & Dimension	5	Lift Height		mm	3000	3000	3000
	6	Fork Size	LxWxT	mm	1220x150x60	1220x150x60	1220x150x70

	7	Mast Tilt Angle	F/R	Deg	6°/12°	6°/12°	6°/12°

	8	Front Overhang (Wheel center to fork face)		mm	590	590	595
	9	Ground Clearance (Bottom of mast)		mm	200	200	200
	10	Overall Dimension	Length to face of fork (Without fork)	mm	3440	3440	3565
	11		Overall Width	mm	2010	2010	2010

	12		Mast Lowered Height	mm	2500	2500	2500

	13		Mast Extended Height (With backrest)	mm	4415	4415	4415

	14		Overhead Guard Height	mm	2430	2430	2430

	15	Turning Radius (outside)		mm	3250	3250	3350
	16	Min. intersecting aisle		mm	2960	2960	3040
Performance	17	Speed	Travel (Empty load)	km/h	30	30	30

	18		Lifting (Full load)	mm/s	500	500	460

	19	Max. Gradeability		%	20	20	20
Chassis	20	Tire	Front	mm	8.25-15-14 PR	8.25-15-14 PR	8.25-15-14 PR

	21		Rear	mm	8.25-15-14 PR	8.25-15-14 PR	8.25-15-14 PR

	22	Wheelbase		mm	2250	2250	2250
	23	Service weight		kg	8150	8750	9750
Power & Transmission	24	Battery	Voltage/Capacity	V/Ah	12/120	12/120	12/120

	25	Engine	Model		PSI4.3L	PSI4.3L	PSI4.3L

	26		Manufacture		PSI	PSI	PSI

	27		Rated output/r.p.m.	kw	76/2300	76/2300	76/2300

	28		Rated torque/r.p.m.	N·m	324/1700	324/1700	324/1700

	29		No. of Cylinder		6	6	6

	30		BorexStroke	mm	101.6x 88.4	101.6x 88.4	101.6x 88.4

	31		Displacement	cc	4300	4300	4300

	32		Fuel Tank Capacity	L	125	125	125
	33	Transmission	Type		Hydraulic	Hydraulic	Hydraulic

	34		Stage (FWD/RVS)		2/2	2/2	2/2

	35	Operating Pressure for Attachment		Mpa	19	19	19
