2-3.8ton LPG Forklift

(0) Reviews

Inquiry Now

Add To Cart

PRODUCT DETAILS
INQUIRY NOW
RELATED PRODUCTS

PRODUCT DETAILS

Parameter table for 2-3.8T dual-fuel LPG
Feature			CPC(D)20	CPC(D)25	CPC(D)30	CPC(D)35	CPC(D)38
Model			CPC(D)20	CPC(D)25	CPC(D)30	CPC(D)35	CPC(D)38
Power Type			Liquefied petroleum gas/gasoline/LPG	Liquefied petroleum gas/gasoline/LPG	Liquefied petroleum gas/gasoline/LPG	Liquefied petroleum gas/gasoline/LPG	Liquefied petroleum gas/gasoline/LPG
Rated Load		kg	2000	2500	3000	3500	3800
Load Center		mm	500	500	500	500	600
Driving Style		/	Sit-on type	Sit-on type	Sit-on type	Sit-on type	Sit-on type

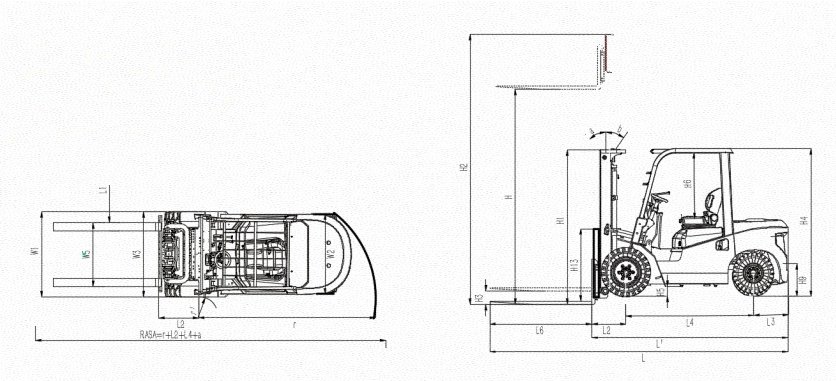

Size
Maximum lifting height	H	mm	3000	3000	3000	3000	3000
Mast ground clearance	H1	mm	2038	2038	2060	2060	2060
Maximum fork lift height	H2	mm	4208	4208	4230	4230	4230
Free lifting height	H3	mm	100	100	100	100	100
Full Height (Cage)	H4	mm	2106	2106	2128	2128	2128
Minimum Ground Clearance (At mast)	H5	mm	110	110	140	140	140
Distance From seat cushion to overhead guard	H6	mm	945	945	945	945	945
Fifth Wheel Height	H9	mm	540	540	570	570	570
High shelf guard	H13	mm	1185	1185	1185	1185	1185
Overall length (with forks / without forks)	L/L'	mm	3675/2595	3675/2595	4040/2810	4040/2810	4040/2850
Wheelbase	L4	mm	1650	1650	1830	1830	1830
Front Overhang	L2	mm	480	480	465	465	465
Rear Overhang	L3	mm	460	460	510	510	510
Full Width	W1	mm	1154	1154	1224	1224	1224
Rack (Front Track / Rear Track)	W3/W2	mm	985/980	985/980	1000/990	1000/990	1000/990
Outside of fork spacing	W5	mm	1100	1100	1100	1100	1100
Minimum Turning Radius	r	mm	2260	2260	2450	2450	2450
Mast Tilt Angle	a/b	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Fork Dimensions	L1	mm	122012245	122012245	122012245	122012245	122012245
Performance
Maximum speed (Fully loaded / Empty)		km/h	16/16	16/16	18/19	18/19	18/19
Lifting speed (Full load / Empty load)		mm/s	530/550	530/550	440/480	440/480	440/480
Maximum tractive force (fully loaded)		kN	16.4/9	16.2/8.6	10.8/9.8	10.8/9.8	10.8/9.8
Maximum gradeability (Full load / Empty load)		%	20/20	20/20	20/20	20/20	20/20
Weight
Total weight		kg	3410	3760	4220	4420	4820
Wheels and Tires
Number of wheels X=Drive wheels (Front / Rear)		/	2X/2	2X/2	2X/2	2X/2	2X/2
Tire Type (Front / Rear)		/	Pneumatic:tyre	Pneumatic:tyre	Pneumatic:tyre	Pneumatic:tyre	Pneumatic:tyre
Tire Size (Front / Rear)		/	7.00-12-12PR/ 6.00-9-10PR	7.00-12-12PR/ 6.00-9-10PR	28x9-15/ 6.50-10	28x9-15/ 6.50-10	28x9-15/ 6.50-10
Service Brake		/	Hydraulic - Pedal-type	Hydraulic - Pedal-type	Hydraulic - Pedal-type	Hydraulic - Pedal-type	Hydraulic - Pedal-type
Parking Brake		/	Mechanical-Hand Lever	Mechanical-Hand Lever	Mechanical-Hand Lever	Mechanical-Hand Lever	Mechanical-Hand Lever
Drive and transmission control device
Battery (Voltage / Capacity)		V/Ah	12/80	12/80	12/80	12/80	12/80
Engine Manufacturer/Model			Japanese GK25 gasoline	Japanese GK25 gasoline	Japanese GK25 gasoline	Japanese GK25 gasoline	Japanese GK25 gasoline
Rated engine power		KW/rpm	37.4/2300	37.4/2300	37.4/2300	37.4/2300	37.4/2300
Rated torque			171.2/1600	171.2/1600	171.2/1600	171.2/1600	171.2/1600
Displacement		L	2.5L	2.5L	2.5L	2.5L	2.5L
Engine fuel tank capacity		L	57	57	57	57	57
Emission standards		/	Ordinary	Ordinary	Ordinary	Ordinary	Ordinary
Transmission gear number (forward/reverse type)		/	Mechanical car 2/2 Hydraulic car 1/1	Mechanical car 2/2 Hydraulic car 1/1	Mechanical car 2/1 Hydraulic car 1/1	Mechanical car 2/1 Hydraulic car 1/1	Mechanical car 2/1 Hydraulic car 1/1
